Fortrust Speed Controllers C2002

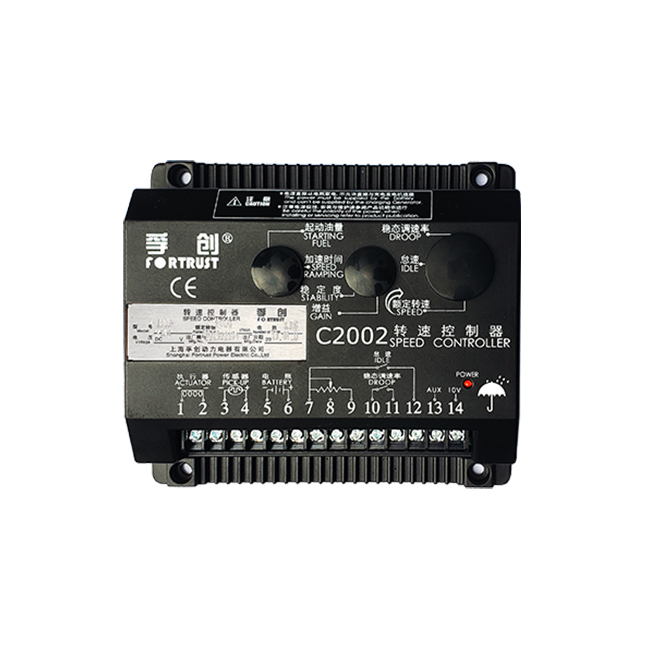

C2002 Speed Control Unit
Basic Characteristics
● R Battery Voltage: DC24V(Range 18V~32V)或 DC12V(Range 9V~16V)
● Power Consumption < 0.1A(Not including the Actuator)
● Speed Fluctuation Rate ≤ ±0.25%
● The Stable Speed Regulating 0~5 % (Adjustable)
● R Ambient Temperature: -40℃~ +70℃
● R Ambient Humidity :< 95%
Product Introduction:
1.1 The dimension of installation
The Speed Controller is installed in the control box or fixed on the other peripheral equipment
of the engine, the ambient with dry air and appropriate temperature will be better. If it be used
under the warter or any humid place,please install the speed controller vertically.

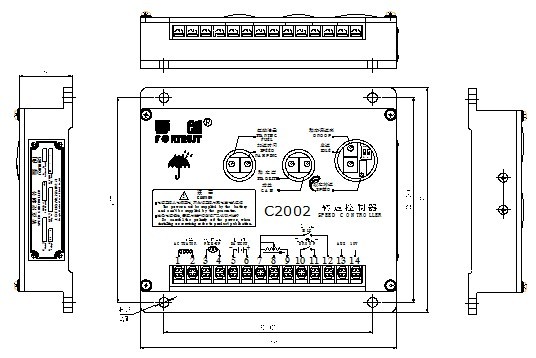

C2002 Installation Drawing
