Fortrust Speed Controllers C2003

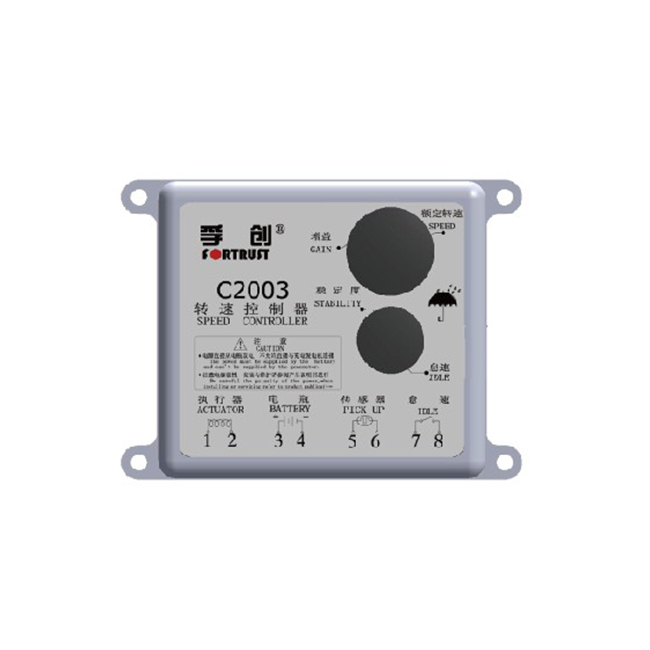

C2003 Speed control Unit
Basic Characteristics
● R Battery Voltage: DC24V(Range 18V~32V)或 DC12V(Range 9V~16V)
● Power Consumption < 0.1A(Not including the Actuator)
● Speed Fluctuation Rate ≤ ±0.25%
● The Stable Speed Regulating 0~5 % (Adjustable)
● R Ambient Temperature: -40℃~ +70℃
● R Ambient Humidity :< 95%
Product Introduction:
1.1 C2003 Basic Function
● Speed Control: Single Close-loop
● High/Low Speed Conversion: Convert between the idle and the rate
● Automatic Shut Down System for the emergency such as no signal and no power.

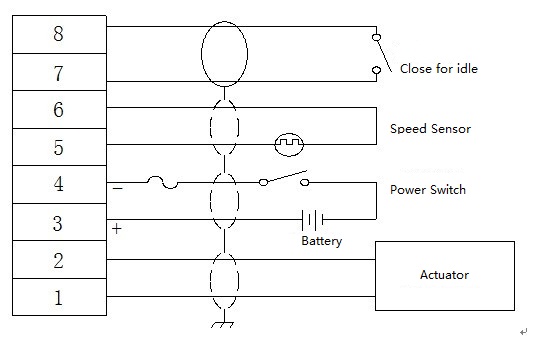

1.2 The Wiring diagram

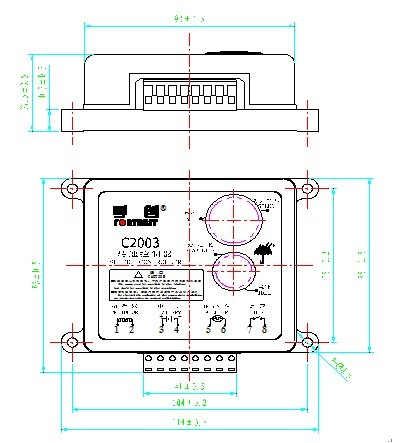

1.3 The dimension of installation
1.4 The connection of wire interface

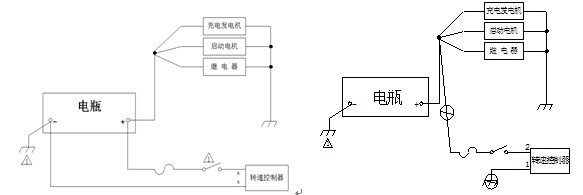

● Interface No.1 and No.2 for connecting the Electromagnetic Actuator; Interface No.3 & No.4 for connecting the battery,the diameter of the wire is not less than 1.3 mm²,it will be better for ruducing the voltage 。For safty consideration,a 15A fuse should be connect on the cable which is connect the positive pole of battery and the actuator(interface No.3);The cable of the actuator should be connected directly and separately,pleasae refer to the following.
R the correct way the incorrect way
