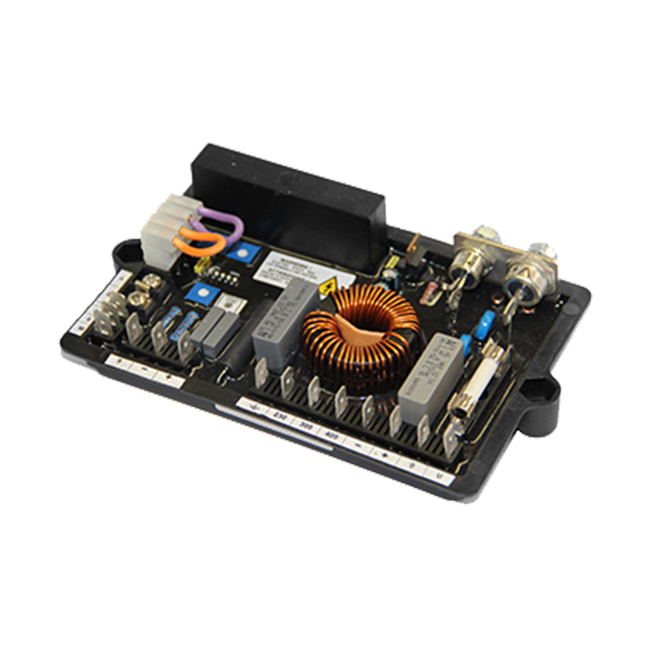

Marelli AVR MGC I
Model | MGC I |
Frame size | 500 ÷ 560 |
Technology | ANALOGUE |
Part number | 10001467 |
Compliance | CE |
Product Introduction:
Electrical characteristics
● Power supply voltage: 170 ÷ 277 Vac @ 50/60 Hz
● Power supply source: Auxiliary windings, mains
● Voltage build-up: 10Vac
● Voltage sensing type: 1-phase
● Voltage sensing range: 170 ÷ 480 Vac
● Current sensing type: 1-phase
● Current sensing range: 1 Aac
● Maximum continuative field current: 0 ÷ 8 Adc
● Maximum forcing field current: 0 ÷ 15 Adc
● Maximum field voltage: 100 Vdc
● Field resistance: 8 Ω ÷ 20 Ω
● Regulation accuracy from no load to full load: ±1 %
● Steady state accuracy: ±0.1 %
● Accuracy with ±4% engine governing: ±1 %
● Thermal Drift: ±0.5 %
● Response time: 1 cycle
● Operating temperature: -30°C ÷ +60°C
● Storage temperature: -40°C ÷ +80°C
Features
● Interface: Potentiometers, dip-switches
● Voltage remote control: Arrangement
● Radio interference suppressor: Internal
● Over-boosting: Arrangement for Varicomp
● Parallel operation with the mains: Arrangement for device
● Parallel operation with similar generators: Arrangement
Functions
● Droop compensation
Protections
● Under-frquency limiter
● Internal fuse, replaceable
Control
● External potentiometer: 1 kΩ - 2 W
● External DC voltage signal (±3 V)
Dimensions and weight
● L: 176 mm
● B: 105 mm
● K: 160 mm
● H: 41 mm
● D: 6.5 mm
● Weight: 460 g
