MAIN FEATURES

• Automatic start/stop of the genset, according to storage batteryvoltage and charge level

• Full ‘Battery Management System’ (BMS) built in, for maximumbattery life and performance

• Voltage and current compensation according to batterytemperature

• Storage battery level visualization

• Variable Speed control of the engine (PMG alternators) and/orexcitation control

• Management of an auxiliary renewable power source (if used)

• Dedicated configurable inputs for DC voltages and currents

• Real time clock and event log

• Freely configurable timers

• Genset fuel consumption and maintenance reduction

• Several communication ports available

EMBEDDED FUNCTIONS

• Automatic/manual start with configurable start/stop timers

•Configurable inputs/outputs

• Storage battery visualizations:

   • temperature

   • residual charge

   • depth of discharge (DoD)

• Automatic start/stop based on storage battery status

• J1939 engine diagnostic codes reading

• Periodical test

• Real Time Clock with internal rechargeable Lithium battery

• External Fuel tank pump management

• 126 events log

• Remote start and stop

• 32 additional event log recording the charge/discharge of thestorage battery

• Pre-heat and coolant heater management

• Hours counter for maintenance scheduling

• Daily counter with embedded calendar for maintenance scheduling

• Embedded alarm horn

• Engine speed measurement by pick-up, frequency, or W terminal

• Configurable by PC or controller’s keyboard

• Remote encryted firmware update

• SMS communication

• NTP, DHCP, DNS and SNMP Support

HS315 COMMUNICATIONS

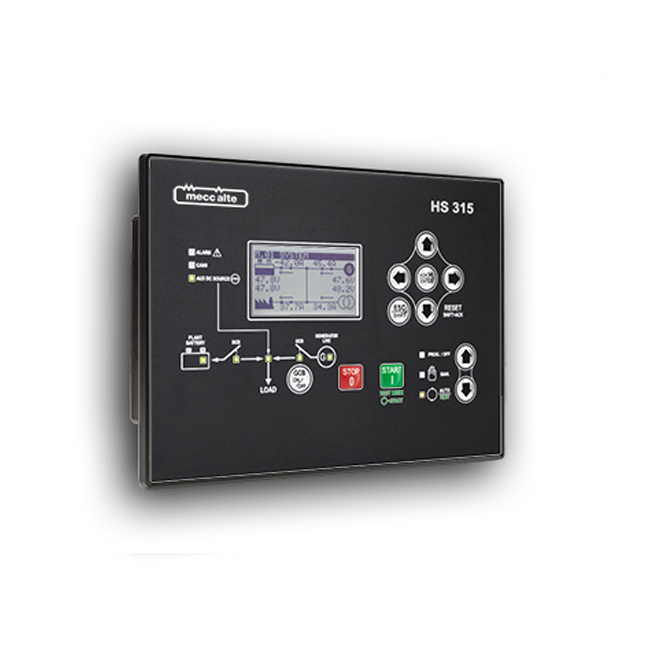

HS315

• USB port

• Serial port RS232 Modbus RTU (supports external modem)

• Insulated serial port RS485 Modbus RTU

• Ethernet port (RJ45) Modbus TCP
• Insulated CANBUS J1939 interface

HS315 Link
• USB port

• Serial port RS232 Modbus RTU (supports external modem)

• Insulated serial port RS485 Modbus RTU

• Insulated CANBUS J1939 interface

• GPRS/LTe/5G Modem

• GPS Antenna

• Motion sensor, accelerometer and gyroscope

• Compliance with CE1588

FURTHER CAPABILITIES

Expandable input and output capability with optional accessories, make
this an extremely powerful DC genset controller.
HS315 is compatible with both electronic CANBUS J1939 and nonelectronic engines.

All the parameters can be set directly by the controller’s keyboard or
alternatively using the free software tool.
Historical events and alarm logs can be accessed from the front panel
and read on the display.

HS315 supports several communication interfaces for local or remote
control.

HS315Link 5G has built in global 5G modem with global 2G fallback
capability, which also utilises the GNSS localisation system (GPS/
GLONASS/BD) to provide a highly accurate positioning system, that
offers industry-leading accuracy and performance. Useful where asset
tracking and monitoring are required.

TECHNICAL DATA

• Supply voltage 7-32V DC

• Power consumption: typically less than 2W (auto mode, standby,LCD lamp saving active)

• Operating frequency 50Hz or 60Hz (AC reading only)• LCD with backlight

• Recommended operating temperature: -30°C to +70°C

• Burn in at 50°C for 48h with test report for each controller

• Protection degree IP65 (gasket included)

• Weight 750grammes

• Overall dimension 244(w) x 178(h) x 50(d) mm

• Panel cut-out: 218(w) x 159(h) mm

• Graphic display dimensions 70 x 38 mm (128 x 64 pixel)

• ECM conforms to EN61326-1

• Safety: built in conformity to EN61010-1
