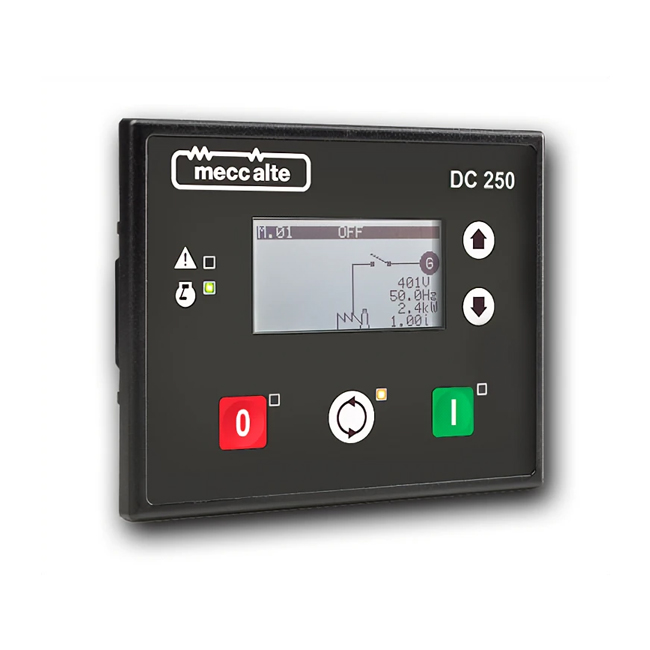

MAIN FEATURES

• DC AUTO-START genset control

• DC lighting tower controller functions

• Engine drive controller for pump, compressor applications withclutch control• Large LCD display with LED backlight and icons• Compact dimensions

• DC voltage sensing and protections

• DC current sensing and protections

• Voltage control over CANBUS for PMG speed/load control

• 4 Configurable digital inputs

• 3 Configurable analogue inputs + Configurable Charge alternator D+input

• 10 Configurable digital outputs

• Interface for traditional MPU and J1939 engines

• USB serial port for configuration and Cyber Secure FW update

• Data recording: 64 events log, 64 (slow) + 42 (fast) periodicalrecordings

• RS485 communications port

• Embedded alarm sounder

• Real Time Clock with internal rechargeable Lithium battery• Periodical test

• Free configuration software

EMBEDDED FUNCTIONS

User-friendly symbols and codes for:

• Minimum/maximum DC voltage generator

• Under/Over speed

• Minimum fuel level/Critical fuel level

• Low and high coolant temperature Warning/Shutdown

• Low/high battery voltage

• Failure engine CANBUS

• Engine protection

• Low oil pressure Warning/Shutdown

• Tier 4 Final/Euro Stage V monitoring and control

• Lighting tower lamp controls (upto 8 lamps)

• Lighting tower mast control

• Lighting tower auto run control

• Engine over crank

• Over speed from generator frequency

• Belt breakage

• Operating conditions not reached

• Emergency stop

• Generator protection:

   • Undervoltage Warning and Shutdown

   • Overvoltage Warning and Shutdown

   • Lighting tower lamp failure detection

   • Staged lamp control - delay

   • Low battery start function

TECHNICAL DATA

• Recommended operating temperature -30°C to +70°C

• Storage temperature -30°C to 80°C

• Dimensions: 142 (W) x 112 (H) x 41 (D) mm

• Cut-out dimensions 118 (W) x 92 (H) mm

• Weight 250grammes

• Protection degree IP65 (with complimentary gasket)
