MECCALTE GENSET CONTROLLER DST4602 REMOTE
Product information table:

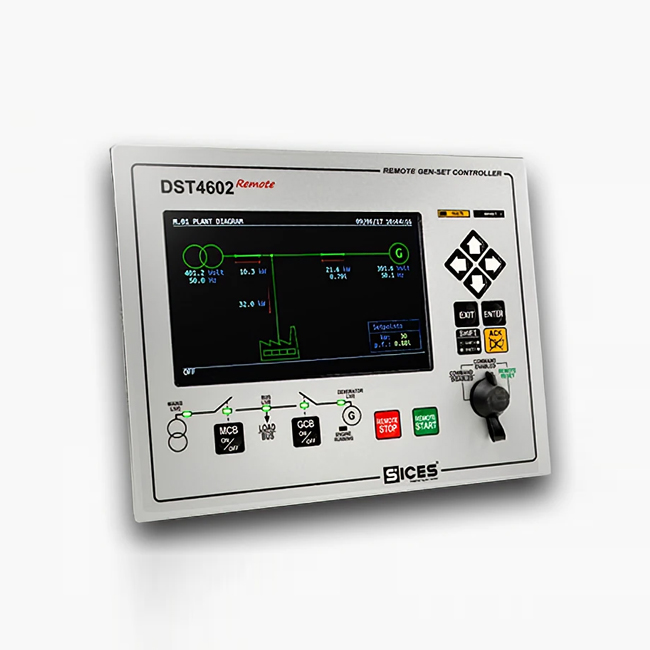

DST4602Remote is an additional remote display for DST4602Evolution, allowing remote control andconfiguration. It can also be connected to DST4602Standard. It shares the same dimensions and look & feelof the main controller (same 7” TFT colour display, same lamps and similar push-buttons). It also allows thesame manual operations.
DST4602Remote can be connected to the DST4602Evolution by:• RS485 insulated serial port (only one DST4602Remote is allowed for each DST4602Evolution).• Ethernet (up to five DST4602Remote is allowed for each DST4602Evolution).The provided key switch is used to enable/disable remote commands, and for resetting alarms. Remotecommands are enabled only if the main controller is in AUTOMATIC mode.
The operator can manually start/stop the engine and can manually open/close the circuit breakers. He/she can also manually change theconfiguration parameters of the main controller.
An internal horn is provided to signals alarms and warnings.
DST4602Remote provides a configurable digital output (three terminals, dry contacts relay 1 Amp); it can beused to manage an external horn, or to highlight the loss of communication with the main controller.
Product Introduction:
MAIN FEATURES
• Remote START/STOP commands for the genset
• Remote OPEN/CLOSE commands for the circuit breakers
• Remote acoustic horn muting.> Remote faults acknowledgment & reset
• Remote parameters configuration
• Local/remote communication settings available from the front panel or by BoardPrg3
TECHNICAL DATADisplay Features
• Supply voltage: 8…33 Vdc.
• Power consumption: 5 W maximum.> Weight: 950 g.
• Overall dimension: 260 (W) x 202 (H) x 33 (D) mm.
• Panel cut-out: 240 (W) x 172 (H) mm.
• Panel mounting: by means of stud-bolt.
• Protection Grade: IP55 (front panel, by means of additional keylock protectivecap and gasket).
• EMC: compliant with EN61326-1.
• Safety: built in compliance with EN61010-1.
Display Features
• TFT, 7’’, colour, 800x480 Pixel.
• Overall dimension: 155(L) x 93(H) mm.
• Operating temperature: -25 °C to 60 °C.
• Stock temperature: -30 °C to 80 °C.
