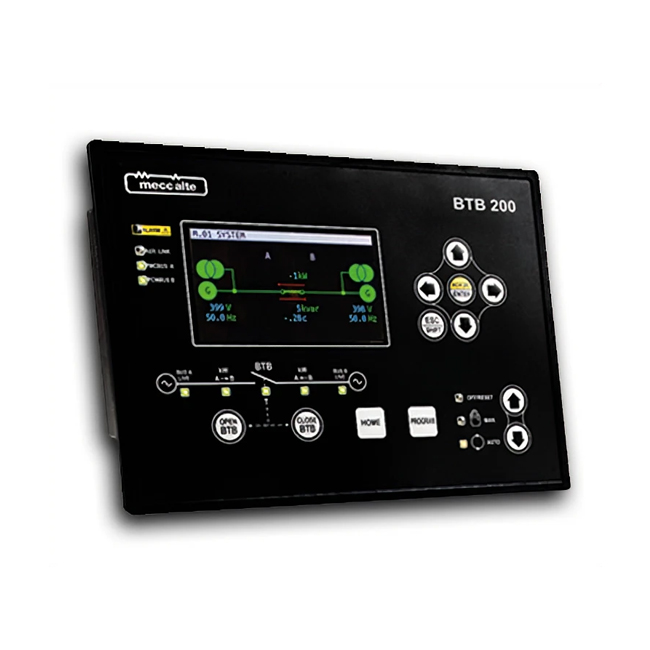

• Meccalte GENSET CONTROLLER BTB200

  Product information table:



  The BTB200 controller provides the ability to control a bus tie breaker,for applications where it is necessary to divide the common bus-barsduring certain operating conditions.It manages the synchronization between the two separated halvesof the bus-bars (named A and B), based on an input signal, taking intoaccount the number of gensets connected on the two halves.Genset synchronization is achieved directly by the CANBUS connectionto the Mecc Alte genset controllers, or alternatively by using analoguelines.BTB200 measures the current flow across the tie breaker (3phase) bymeans of current transformers. It is able to measure the active (kW),reactive (kVAR) and apparent power (kVA) exchanged on the bus-bars(and the power factor too), showing the flowing direction (A to B or Bto A) on the display and by the LEDs on the front panel. BTB200 alsomeasures the total energy on the bus-bars using energy counters(active and reactive, A to B and B to A).For complex applications, it is possible to connect on the same CANBUSup to 8 BTB200 bus tie breaker controllers, and up to 16 MC200 mainscontrollers and up to 16 GC600 or 24 DST4602Evolution gensetcontrollers.BTB200 provides several different communication options, toensure easy integration with remote monitoring facilities and buildingmanagement systems.A large full colour display presents operating status in a clear easy toview format. Combined with generous input and output capability thatmeans complex sites can be tackled with ease.
