MAIN FEATURES

• True RMS readings on generator voltages and currents

• Additional current measurement for neutral or ground faultprotection

• Active, reactive and apparent power measurements

• Engine speed measurement by pick-up, frequency or W terminal

• Graphic display with self or manual adjustable contrast based onthe temperature

• Insulated J1939 and MTU MDEC CAN interface

• Interface with traditional MPU engines

• USB, RS232 and insulated RS485 serial port with MODBUS RTUprotocol, ethernet interface with MODBUS TCP protocol

• Real time clock with battery

• Events and data recording

• Android and iOS app available for monitoring and remote control

EMBEDDED FUNCTIONS

• Engine diagnostic codes• Periodical test

• Real time clock with internal rechargeable lithium battery

• Fuel pump management, for external fuel tank

• 126 events log

• Pre-glow heat and coolant heater management

• Remote start and stop• Override function

• Hours counter for the maintenance schedule

• Daily counter with embedded calendar for the maintenance

• Embedded alarm sounder

• Programmable by PC or using the keyboard of the controller

• Remote encrypted firmware update

• SMS communication

• DHCP, DNS, NTP and SNMP support are available

• Threshold as load shedding

• Internal active and reactive power regulation

• Internal load-sharing• Internal synchronizer

• Powerful load management suitable for gensets of different powers

• CAN interface for ECU connection (J1939 and MTU MDEC)

• Insulated CAN interface for PMCBUS application (LOAD–SHARINGand parallel management)

• Up to 16 gensets connected together

• Up to 4 alternative configurations

• Easy plant configuration• Load and unload ramps

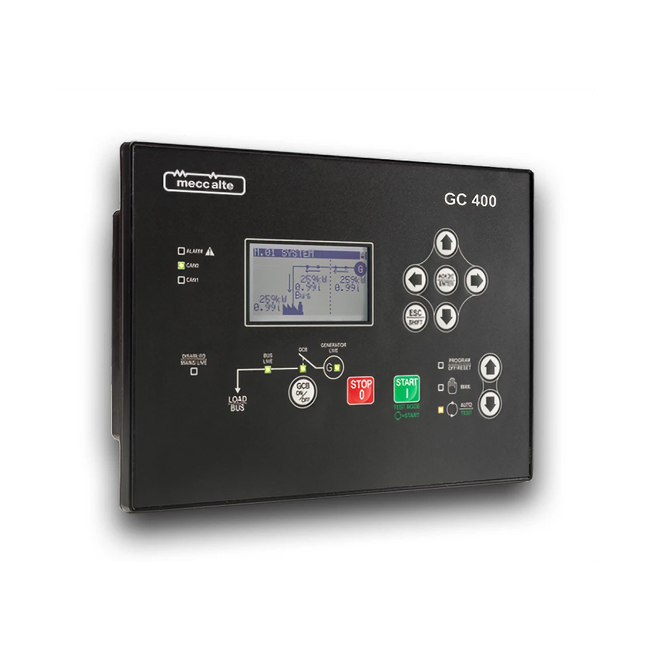

GC400 COMMUNICATIONSGC400/GC400 Mains

• USB port

• RS232 Serial port Modbus RTU (support external modem)

• RS485 Insulated serial port Modbus RTU

• RJ45 Port as Ethernet interface TCP/IP

• Insulated CANBUS J1939 and MTU MDEC interface

• Additional CANBUS (PMCBUS) for the load sharing

GC400 Link

• USB port

• RS232 serial port Modbus RTU

• RS485 insulated serial port Modbus RTU

• Insulated CANBUS J1939 interface

• Additional CANBUS (PMCBUS) for the load sharing

• GPRS/GPS (2G/4G/5G ready) modem

Options

• REWIND - GPRS/GSM/GPS device (SMS alarms and warnings)

• PSTN Modem (data calls for alarms and warnings)

TECHNICAL DATA

• Supply voltage 7-32V DC

• Power consumption typically less than 2W (auto mode, standby,AMF active, LCD lamp saving active)

• Operating frequency 50Hz or 60Hz

• LCD with backlight• Recommended operating temperature -30°C to +70°C

• Burn in at 50°C for 48h with test report for each controller

• Protection degree IP65 (gasket included)

• Weight 750grammes

• Overall dimension: 244 W) x 178 (H) x 40 (D) mm

• Panel cut-out: 218 (W) x 159 (H) mm

• Specific function for French market EJP / EJP-T

• EMC conforms to EN61326-1

• Safety built in conformity to EN61010-1
