MAIN FEATURES

• Remote control systems

• True RMS readings on mains voltages and on generator voltages andcurrents including neutral

• Active, reactive and apparent power measurements

• Frequency and power measurement on mains input

• Engine speed measurement by frequency, pick-up or W

• 8 programmable inputs and 8 programmable outputs

• Additional current measurement for neutral or ground faultprotection (50N + 64)

• Graphic display with self or manual adjustable contrast based on thetemperature

• Insulated J1939 and MTU MDEC CAN interface

• USB interface with MODBUS RTU protocol

• Capable of connection to SIMONE software

• Real time clock with rechargeable battery

• Events and data recording

• Free monitoring tool

EMBEDDED FUNCTIONS

• Engine diagnostic codes

• Real time clock with internal rechargeable lithium battery

• Periodical test

• Hours counter for the maintenance schedule

• Start time with crank and rest timers

• Day counter with embedded calendar for the maintenance

• Smart weekly and monthly calendar for selecting specific days ofthe year

• Configurable automatic daylight saving

• AND/OR logics and configurable TIMERS

• Remote start and stop• 126 events log

• Fuel pump management for external fuel tank

• Pre-heat and coolant heater management

• Embedded alarm sounder

• Customised front panel with customer branding available

• Programmable via PC or controller’s keyboard

• Remote encrypted firmware update

• SMS communication

• NTP, DHCP and DNS

• Load shedding

GC315 COMMUNICATIONS

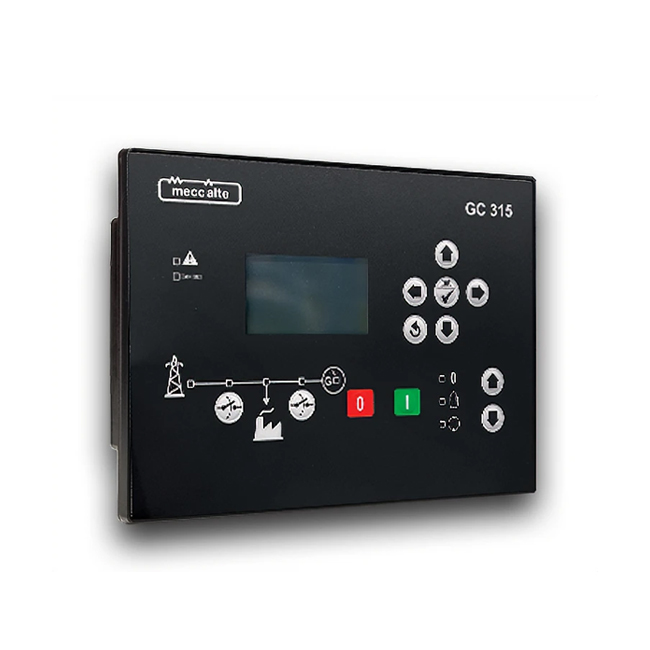

GC315

• USB port

• Insulated CANBUS J1939 and MTU MDEC Interface

GC315 Plus

• USB port

• Serial port RS232 Modbus RTU

• Insulated serial port RS485 Modbus RTU

• RJ45 port as Ethernet interface Modbus TCP

• Insulated CANBUS J1939 and MTU MDEC Interface

GC315 Link

• USB port

• Serial port RS232 Modbus RTU

• Insulated serial port RS485 Modbus RTU

• Insulated CANBUS J1939 and MTU MDEC Interface

• GPRS Modem

• GPS Antenna

• Motion sensor, accelerometer and gyroscope

• Compliance with CE1588

Options

• REWIND - GPRS/GSM/GPS Device

• DANCE - Ethernet interface

TECHNICAL DATA

• Supply voltage 7-32V DC

• Power consumption typically less than 2W (auto mode, standby,AMF active, LCD lamp saving active)

• Operating frequency: 50Hz or 60Hz

• Voltage measurement range: 30-520V L-L (50Hz) 35-520V L-L(60Hz)

• Recommended operating temperature -30°C to +70°C

• LCD with backlight• Protection degree IP65 (gasket included)

• Weight 600 grammes• Overall dimension 244 (W) x 178 (H) x 40 (D) mm

• Panel cut-out 218 (W) x 159 (H) mm

• Specific function for French market EJP EJP-T

• EMC conforms to EN61326-1

• Safety built in conformity to EN61010-1
