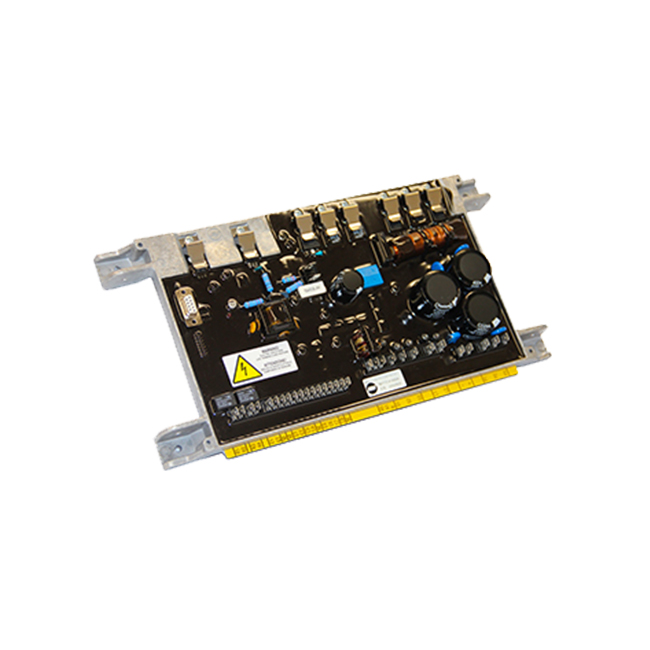

Marelli AVR MEC-100
Model | MEC-100 |
Frame size | On request 160 ÷ 900 (as spare part) |
Technology | DIGITAL |
Part number | 10009777, 10009784 |
Compliance | CE |
Product Introduction:
Electrical characteristics
● Power supply voltage: 170 ÷ 277 Vac @ 50 ÷ 400 Hz
● Power supply source: Auxiliary windings, mains, PMG
● Voltage build-up: 15 Vac
● Voltage sensing type: 1-phase / 3-phase
● Voltage sensing range: 100 ÷ 500 Vac
● Current sensing type: 1-phase
● Current sensing range: 1 Aac / 5 Aac
● Maximum continuative field current: 0 ÷ 10 Adc
● Maximum forcing field current: 0 ÷ 20 Adc
● Maximum field voltage: 250 Vdc
● Field resistance: 3 Ω ÷ 20 Ω
● Regulation accuracy from no load to full load: ±0.25 %
● Steady state accuracy: ±0.1 %
● Accuracy with ±4% engine governing: ±1 %
● Accuracy in PF / VAR / FCR modes: ±2 %
● Voltage matching accuracy: ±0.5 %
● Thermal Drift: ±0.5 %
● Response time: 1 cycle
● Operating temperature: -30°C ÷ +70°C
● Storage temperature: -40°C ÷ +80°C
Features
● Interface: MEC-100 Interface System software
● Interface port: Serial RS232
● Voltage remote control: Arrangement
● Radio interference suppressor: Arrangement for external filters
● Over-boosting: Arrangement for Varicomp
● Parallel operation with the mains: Internal
● Parallel operation with similar generators: Arrangement
Functions
● Droop compensation
● Soft start
● Voltage matching
Protections
● Under-frequency limiter
● Over-excitation limiter
● Under-excitation limiter
● Field over-voltage
● Fied over-current
● Generator over-voltage
● Generator under-voltage
● Generator over-current
● Loss of sensing
● Diode monitoring
Control
● 2 external DC current inputs (4 ÷ 20 mA)
● 8 digital contact inputs
● 2 digital outputs
Dimensions and weight
● L: 353 mm
● B: 183.5 mm
● K: 322 mm
● J: 148.5 mm
● H: 53 mm
● D: 4.5 mm
● Weight: 2000 g
