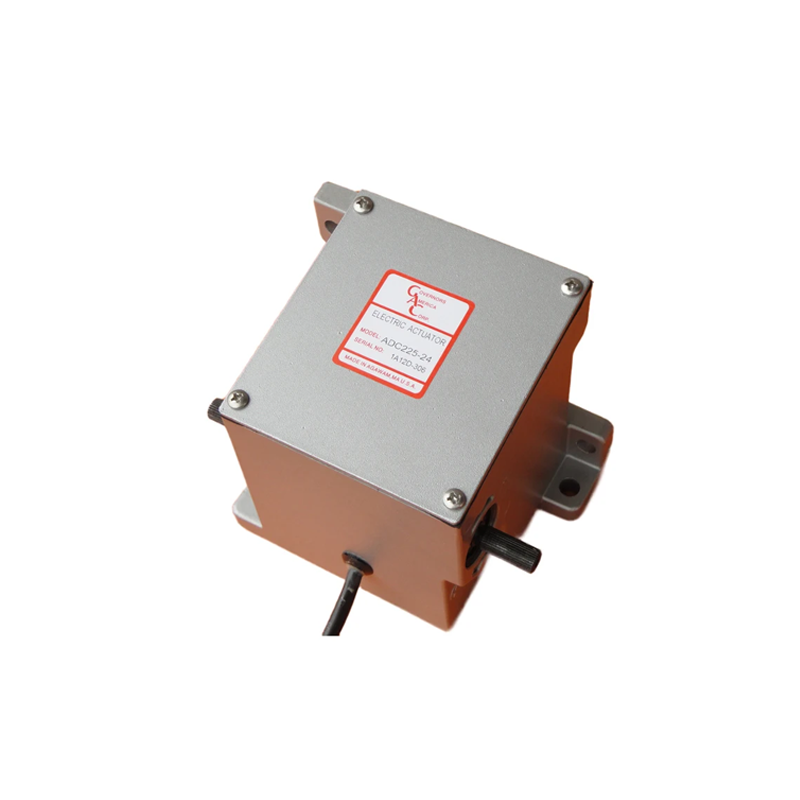

The 225 series electric actuator is a rotary output, linear torque, proportional servo. This electromechanical actuator is commonly used as an engine fuel control positioning device. An internal spring forces the actuator to the fuel shut-off position in the event of an actuator power failure, allowing for fail-safe operation. This design combines fast operation, multi-voltage use, wider rotation angles, and proven reliability. The actuator can be powered directly from 12- and 24-volt batteries. The actuator typically operates faster than comparable products, resulting in a more stable and rapid response to transient conditions. Applications include most block pumps, distributor-type pumps, and mid-size carbureted engines with or without mechanical governors. 25 degrees of swivel angle makes it suitable for a wider range of engines.

ADC225

Power Input Operating Voltage 12, 24VDC

Normal operating current 3.0A at 12V. 1.5A at 24V.

Maximum Continuous Rated Current 8.0A at 12V. 4.0A at 24V

Performance Available Torque Maximum 2.2 lb-ft (2.7 Nm)

Maximum shaft working stroke 25± 1 degrees CW/CCW

Ambient Temperature -65 to +200°F (-54° to +95°C)

Relative humidity Up to 100%

All finishes are antifungal
