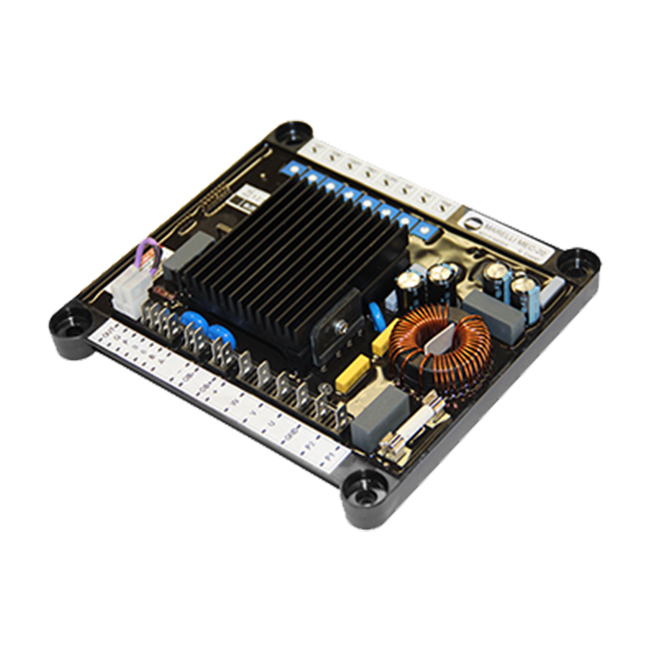

Marelli AVR MEC-20
Model | MEC-20 |
Frame size | 315 ÷ 450 (On request 160 ÷ 250) |
Technology | DIGITAL |
Part number | 11000317 |
Compliance | CE |
Product Introduction:
Electrical characteristics
● Power supply voltage: 170 ÷ 277 Vac @ 50 ÷ 400 Hz
● Power supply source: Auxiliary windings, mains, PMG
● Voltage build-up: 8 Vac
● Voltage sensing type: 1-phase / 3-phase
● Voltage sensing range: 220 ÷ 480 Vac
● Current sensing type: 1-phase
● Current sensing range: 1 Aac
● Maximum continuative field current: 0 ÷ 7 Adc
● Maximum forcing field current: 0 ÷ 15 Adc
● Maximum field voltage: 200 Vdc
● Field resistance: 3 Ω ÷ 20 Ω
● Regulation accuracy from no load to full load: ±0.5 %
● Accuracy with ±4% engine governing: ±1 %
● Thermal Drift: ±0.5 %
● Response time: 1 cycle
● Operating temperature: -30°C ÷ +70°C
● Storage temperature: -40°C ÷ +80°C
Features
● Interface: Potentiometers, dip-switches
● Voltage remote control: Arrangement
● Radio interference suppressor: Internal
● Over-boosting: Arrangement for Varicomp
● Parallel operation with the mains: Arrangement for device
● Parallel operation with similar generators: Arrangement
Functions
● Droop compensation
● Soft start
Protections
● Under-frequency limiter
● Over-excitation limiter
● Internal fuse, replaceable
Control
● External potentiometer: 100 kΩ - 1 W
● External DC voltage signal (±5 V)
Dimensions and weight
● L: 180 mm
● B: 170 mm
● K: 160 mm
● J: 150 mm
● H: 41 mm
● D: 6.5 mm
● Weight: 760 g
