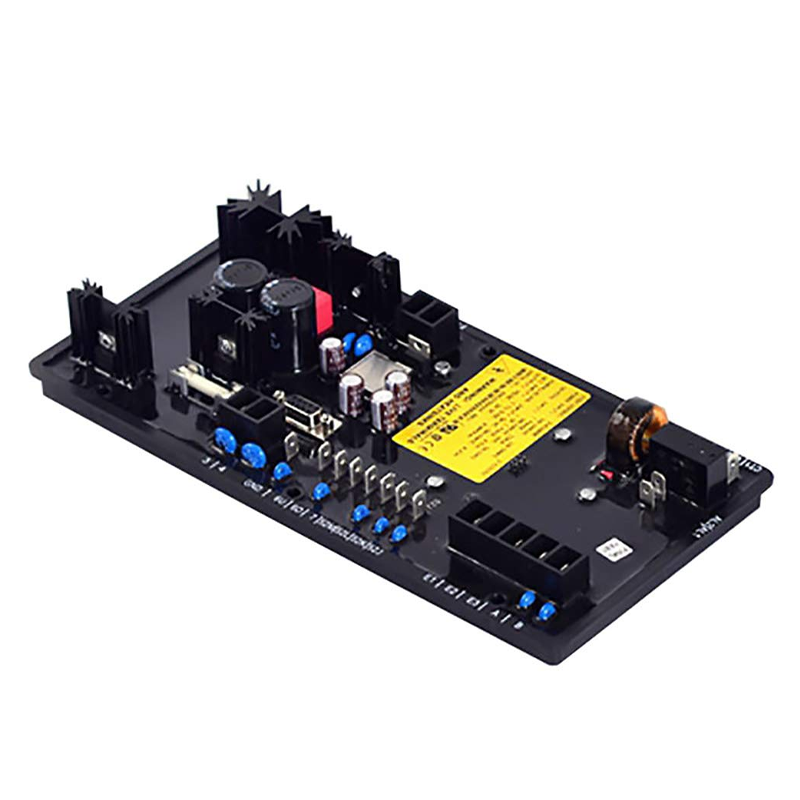

Electric Voltage Regulators DVR2000E
Product Introduction:
EXPORT ONLY
The Marathon DVR®2000E voltage regulator is an electronic, solid state, microprocessor-based control device. The Automatic Voltage Regulator regulates the output voltage of a brushless, ac generator by controlling the current into the generator exciter field. Input power to the DVR2000E is from a multi-pole, high-frequency, permanent magnet generator (PMG).
Marathon DVR2000E Voltage Regulator Features and Capabilities:
Four control modes:
*Automatic Voltage Regulation (AVR)
*Manual or Field Current Regulation (FCR)
*Power Factor Regulation (PF)
*Reactive Power Regulation (VAR)
Programmable stability settings
*Soft start control with an adjustable time setting in AVR control mode
*Overexcitation limiting (OEL) in AVR, VAR and PF control modes
*Underfrequency (volts/hertz) regulation
*Crowbar circuitry protects the field
*Overtemperature protection
*Three-phase or single-phase generator voltage (RMS) sensing/regulation in AVR mode
*Single-phase generator current sensing for metering and regulation purposes
*Field current and voltage sensing
*Four contact sensing inputs for system interface
*One common output relay for alarm indication and trip functions
*Six protection functions
Overexcitation shutdown
*Generator overvoltage shutdown
*DVR overtemperature shutdown
*Loss of generator sensing shutdown
*Overexcitation limiting
*Crowbar shutdown
*Generator paralleling with reactive droop compensation and reactive differential compensation
Front-panel human-machine interface (HMI) indicates system and DVR2000E status and gives the ability to make setting changes at the front panel
Rear RS-232 communication port for personal computer communication using MARATHON-DVR2000E-COMS Windows-based software for fast, user-friendly setup and control
