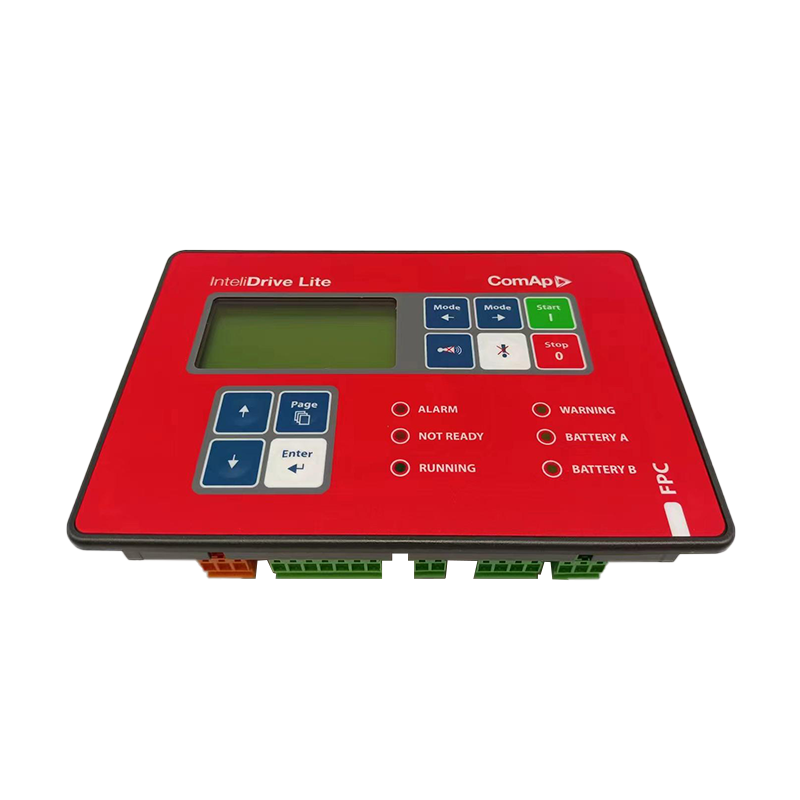

InteliDrive Fire Pump

Engine controller designed for diesel-driven fire pump applications.

• Modular engine controller designed for diesel driven fire pump applications based on the NFPA 20 standard

• Automatic and manual starting sequence based on two batteries according to NFPA 20 standard

• Support of engines equipped with Electronic Control Unit (ECU) - J1939 or Cummins Modbus interface

• Analog gauge (VDO, Datcon) outputs – operator friendly

• Engine speed control

• 3 configurable analog inputs + 2 analog inputs of battery voltage measurement

• 7 configurable binary inputs and outputs 6 LED indicators (Alarm, Warning, Not Ready, Running, Battery A, Battery B)

• Selectable protections alarm/shutdown1 level of password protection

• USB, RS485/RS232/Modem/Modbus communication

• Automatic SMS on alarm

• On-line control and monitoring over web pages (embedded web server) via IB-Lite2 languages (user changeable)

• Real time clock and event history log

• Push buttons for simple control, lamp test

• Front panel sealed to IP65

• Based on the NFPA20 standards

• EN certification

• Comparator with hysteresis regulation
