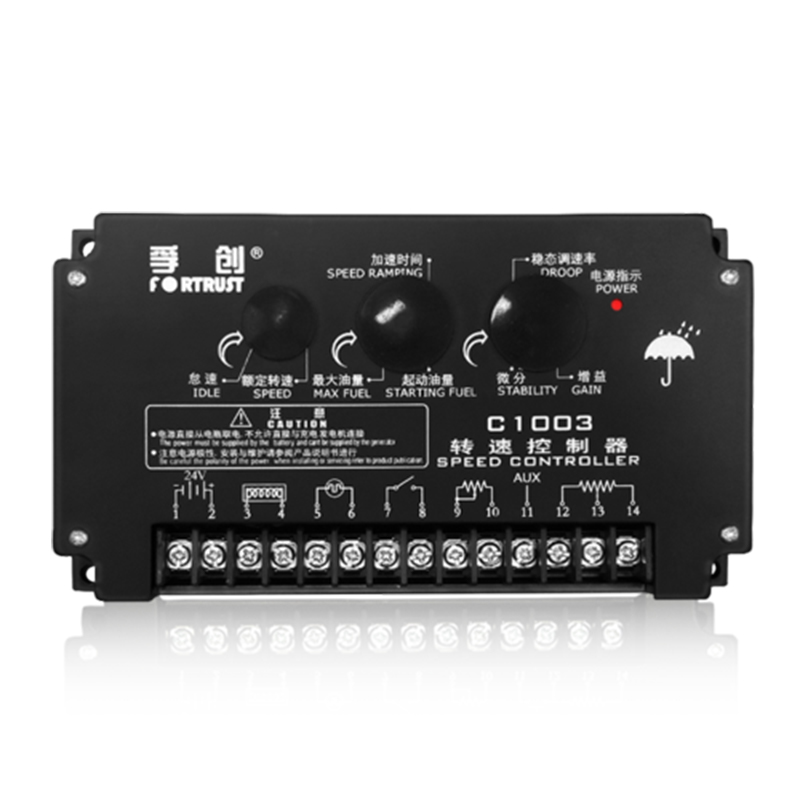

2.1 C1003 type speed controller (speed controller)

2.1.1Basic electrical characteristics

Power supply voltage: DC 24V (range 18V~32V)

Power consumption: <0.1A (excluding actuator)

Control frequency: 1000~13000Hz

Speed fluctuation rate: ≤±0.25%

Steady state regulation rate: 0~5% adjustable

Transient speed regulation: ≤10%

Ambient temperature: -40 degrees Celsius to +80 degrees Celsius

Ambient humidity: <95%

Protection level: IP44

2.1.2 Basic functions of C1003 speed controller

Power indicator light: Indicates whether the speed controller is powered normally;

Adjustable starting oil amount: adjust the smoke exhaust condition when starting the engine;

Maximum oil quantity limit: Limit the maximum fuel injection quantity of the oil pump to prevent overuse of the engine;

Speed control and speed fine-tuning: Double closed-loop method is used to control the speed, and the speed can be accurately adjusted and remotely controlled;

Adjustable speed-up time: The speed-up time of the engine from idle to rated operating conditions can be adjusted;

High and low speed conversion: can switch between idle speed and rated working conditions;

Steady-state regulation rate (rapid drop) is adjustable: Steady-state regulation rate range is adjustable;

Parallel function: Multiple units can be operated in parallel through manual or automatic parallel function;

Full speed regulation: Continuous and smooth adjustment between speeds within a certain range can be achieved;

Automatic parking protection: When the speed signal disappears and the controller loses power, the engine will automatically stop;
