Product Introduction:

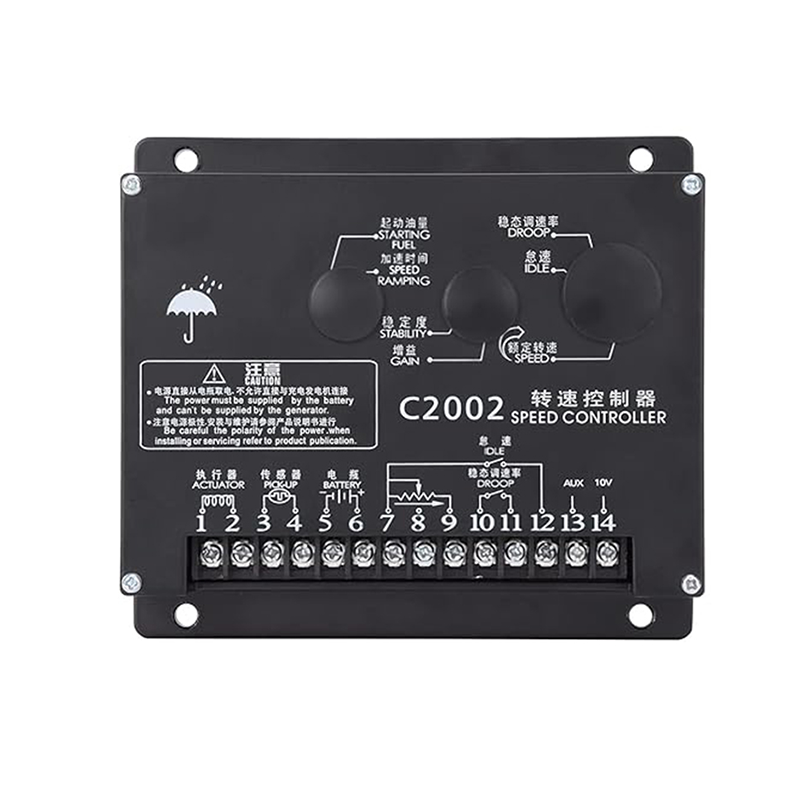

1 C2002 Speed Control Unit

1.1   Basic Characteristics

ØR Battery Voltage: DC24V(Range 18V~32V)或 DC12V(Range 9V~16V)

Ø Power Consumption < 0.1A(Not including the Actuator)

Ø Speed Fluctuation Rate ≤ ±0.25%

Ø The Stable Speed Regulating 0~5 % (Adjustable)

ØR Ambient Temperature: -40℃~ +70℃

ØR Ambient Humidity :< 95%

1.2The dimension of installation

       The Speed Controller is installed in the control box or fixed on the other peripheral equipment

of the engine, the ambient with dry air and appropriate temperature will be better. If it be used

under the warter or any humid place,please install the speed controller vertically.

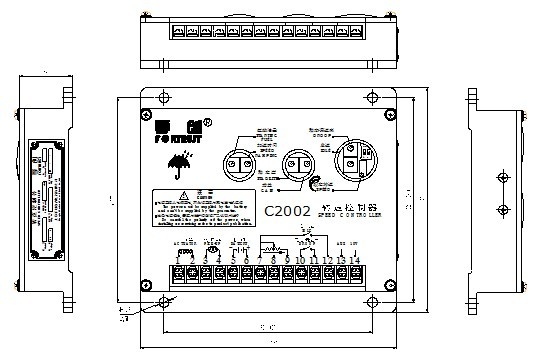

                           C2002 Installation Drawing
