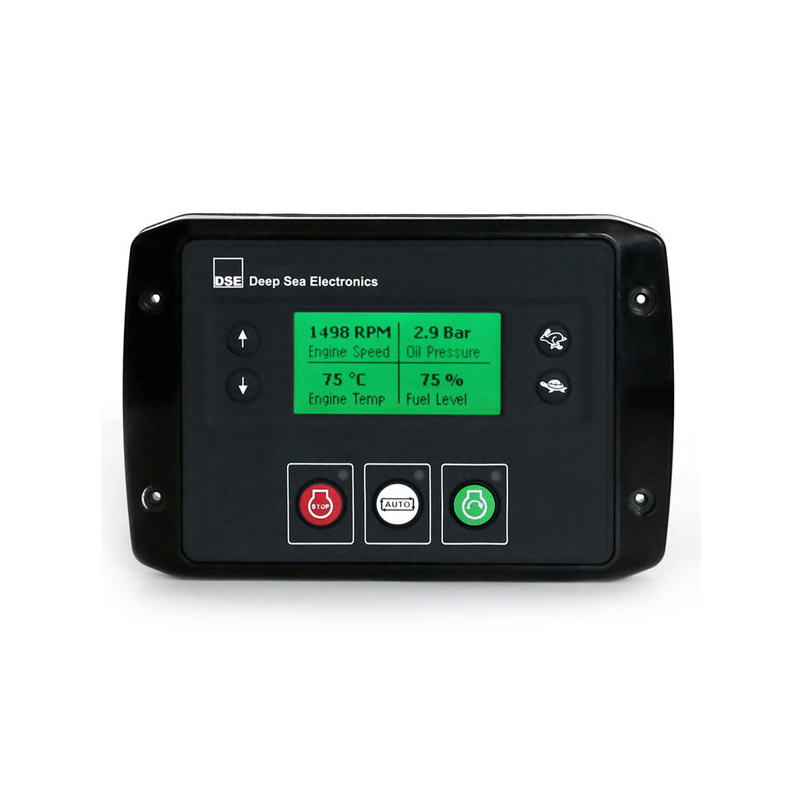

DSEE400

Engine Only Control Module

NOW INCLUDES ADVANCED PLC EDITOR FUNCTIONALITY

The DSEE400 is an IP67 rated engine control module that offers flexible control with built-in monitoring and protection. The control module is compatible with both electronic and mechanical diesel engines and be fully configured for a wide range of applications including engine driven pumps and compressors.

All engine control functions including engine start, speed and clutch control can be achieved automatically and manually.

OVERALL SIZE
189 mm x 125 mm x 54 mm (7.5" x 4.9" x 2.1")
PANEL CUT OUT
148 mm x 112 mm (5.8" x 4.4")
PRODUCT VARIANTS
E400-01 - E400 Engine Controller
E400-02 - E400 Engine Controller (Htr)
RELATED PARTS
007-850 - Deutsch connector A (DT16-18SA-k004), 18 way complete with pins.
007-851 - Deutsch connector C (DT16-18SC-K004), 18 way complete with pins.
007-852 - Set of 2 harnesses, a & C connectors, pre-wired, 1.2 m cables marked.
