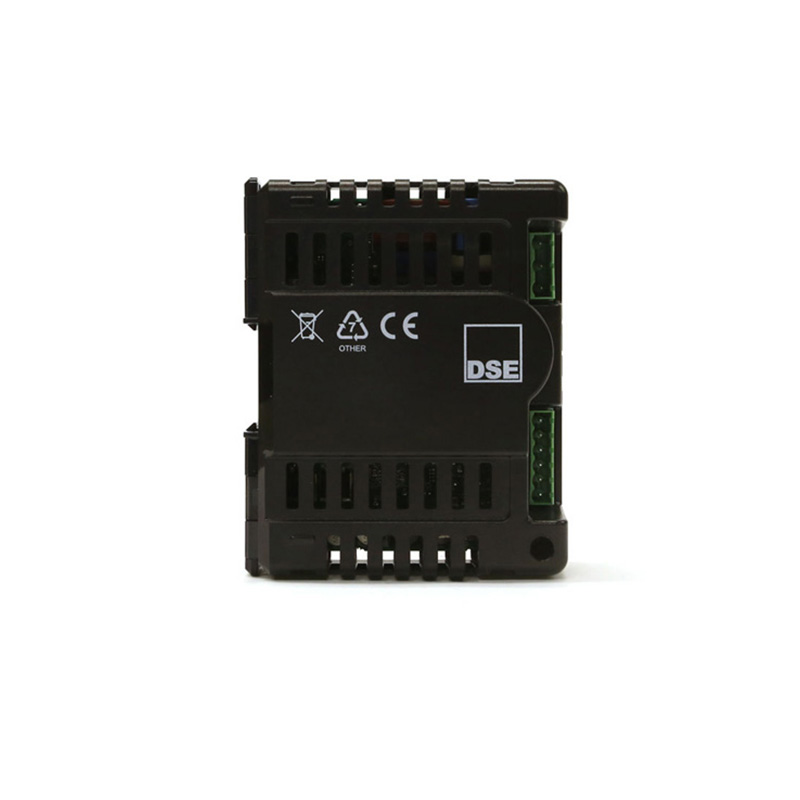

DSE9701

Vertical 24 volt 5 amp Battery Charger

The DSE9701 24 volt 5 amp switch-mode battery charger keeps batteries charged to their maximum capacity at all times. It is designed for permanent battery connection and can be DIN rail or chassis mounted. The charger includes a normal or overload condition LED indicator on the front to assist with status identification. The charger operates during cranking and running and accepts multiple AC voltage connections.

The charger incorporates premium grade capacitors and components to ensure premium levels of efficiency. The robustness of the design makes the charger perfect for heavy and light industrial environments.

DIN RAIL MOUNTED (W x H x D)
110 mm x 133 mm x 48 mm (4.3” x 5.2” x 1.9”)
CHASSIS MOUNTED (W x H x D)
112 mm x 153 mm x 48 mm (4.4” x 6.0” x 1.9”)
WEIGHT
0.4kg
PRODUCT VARIANTS
9701-01 - Vertical 24 Volt 5 Amp Battery Charger (90-305v 50/60Hz)
