Product Introduction:

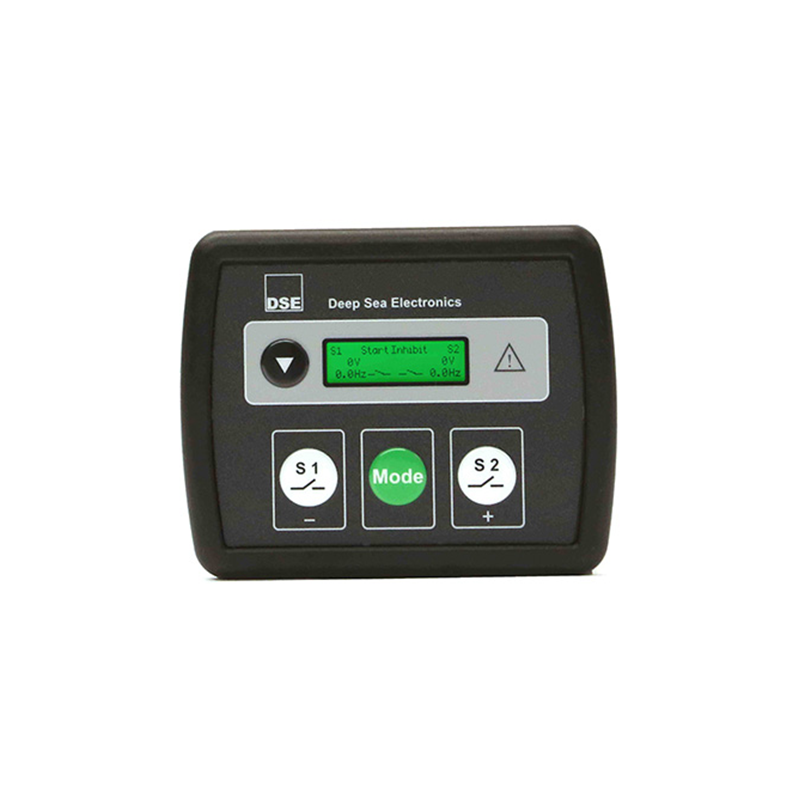

DSE330

Auto Transfer Switch Control Module

The DSE330 Automatic Transfer Switch Control Module monitors the voltage and frequency of an incoming AC supply from two different sources. These sources can be generator or mains (utility), or a combination of both.

The control module monitors Source 1 (S1) and Source 2(S2). When a failure occurs a start command is issued to the inactive source to take over the load. The module will return the load to the mains (utility) as soon as this becomes available.

OVERALL SIZE
98 mm x 79 mm x 40 mm (3.9” x 3.1” x 1.6”)
PANEL CUTOUT SIZE
80 mm x 68 mm (3.1” x 2.7”)
MAXIMUM PANEL THICKNESS
8.0mm (0.3”)
WEIGHT
0.16kg
PRODUCT VARIANTS
0330-01 - 330 Auto Transfer Switch Control Module - 12/24 Volt DC Supply
