Product Introduction:

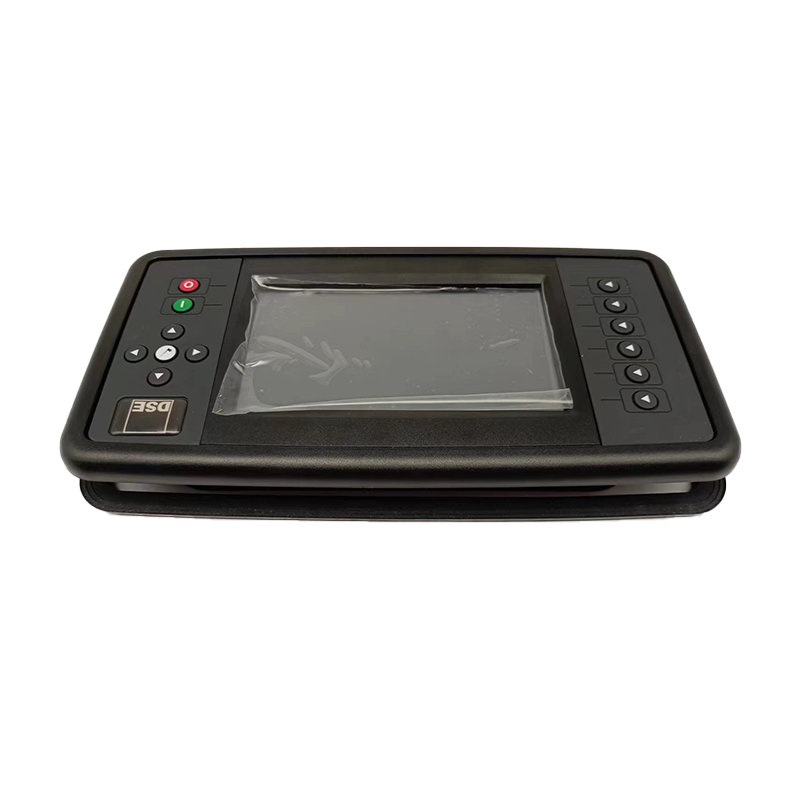

DSE8003 MKII

7" Graphical Colour Multi-Set Remote Overview Display

The DSE8003 is a full colour 7” graphical remote overview display. It has been designed to seamlessly integrate with 86xx MKII load share control modules.

The MKII version offers an improved graphical user interface and faster operating response times compared to its MKI predecessor.

Using a RS485 link a single overview display can be connected to multiple control modules over a maximum distance of 1.2km.

OVERALL SIZE
310 mm x 160 mm x 40 mm (12.2” x 6.3” x 1.5”)
PANEL CUTOUT SIZE
282 mm x 136 mm (11.1" x 5.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3”)
WEIGHT
1.0kg
PRODUCT VARIANTS
8003-02 - 8003 7" Graphical Colour Multi-Set Remote Overview Display
