Product Introduction:

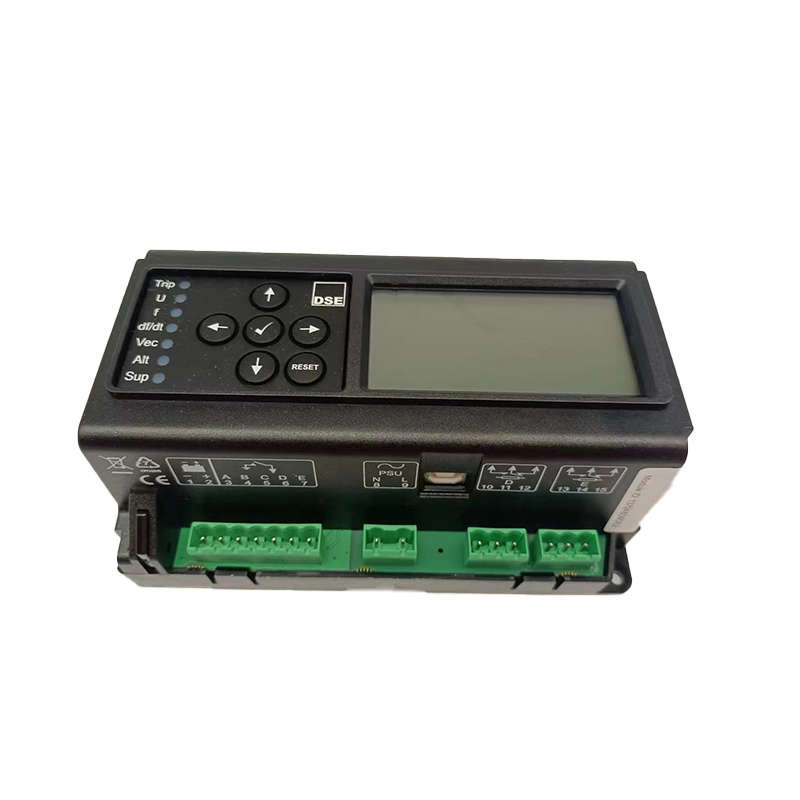

DSEP100

Mains Decoupling Relay

FULLY G99/1 & G98/1 COMPLIANT

G99 Type Tested Variant - Now Available (DSEP100-02)


The DSEP100 G99/G59 Mains(utility) Protection Relay detects changes in the mains (utility) supply to which the distributed energy resource (DER) is connected.

If a mains (utility) failure is detected, the DSEP100 will disconnect the equipment in line with national and international DNO requirements.  This removes the risk of an islanded grid being formed and protects DER equipment.


DSEP100 is suitable for use with all DER equipment supplying power in parallel with the mains (utility) supply.  This includes diesel generators and renewable energies such as photovoltaic (solar) and wind turbine installations etc.

The DSEP100-02 G99 type tested variant is supplied with pre-configured settings to comply with G99 that cannot be changed by the user.

OVERALL SIZE
157 mm x 95 mm x 67 mm (6.2” x 3.5” x 2.6”)
PANEL CUTOUT SIZE
N/A
MAXIMUM PANEL THICKNESS
N/A
WEIGHT
0.38kg
PRODUCT VARIANTS
P100-01 - P100 Mains (Utility) Decoupling Relay
P100-02 - P100 Mains (Utility) Decoupling Relay (G99 Type Tested)
