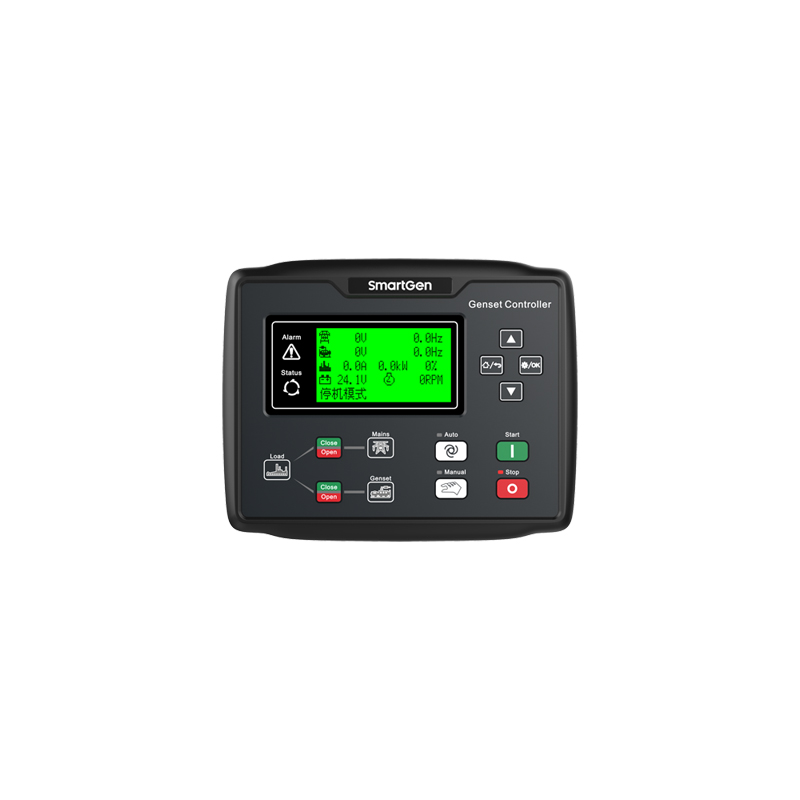

HGM6120LT

Single unit automation + Remote signal start/stop + AMF

Working PowerRange : DC(8-35)V

Overall Dimension : 209*166*45

Installation Dimension : 186*141

Working Temperature : (-40~+70)℃

weight : 0.65kg

HGM6100LT series automatic controller is specially designed for applying to extremely high/low temperature (-40℃~+70℃) environment. It is an automatic control and monitoring system for genset, which integrates digital, intelligent and network techniques. It can reliably work in extremely temperature environment due to its heatable LCD and special electron components. Moreover, it carries out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.

HGM6100LT series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc.. All the parameters can be configured from front panel or use USB interface (or RS485 interface and ENTHERNET) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

HGM6100LT controller has two types:

HGM6110LT: it is used for single unit automation, controlling generator to start/stop by remote start signal;

HGM6120LT: Based on HGM6110LT, it adds mains electric quantity monitoring and mains/generator automatic switching control (AMF), especially suitable for the automation system composed by mains and genset.
