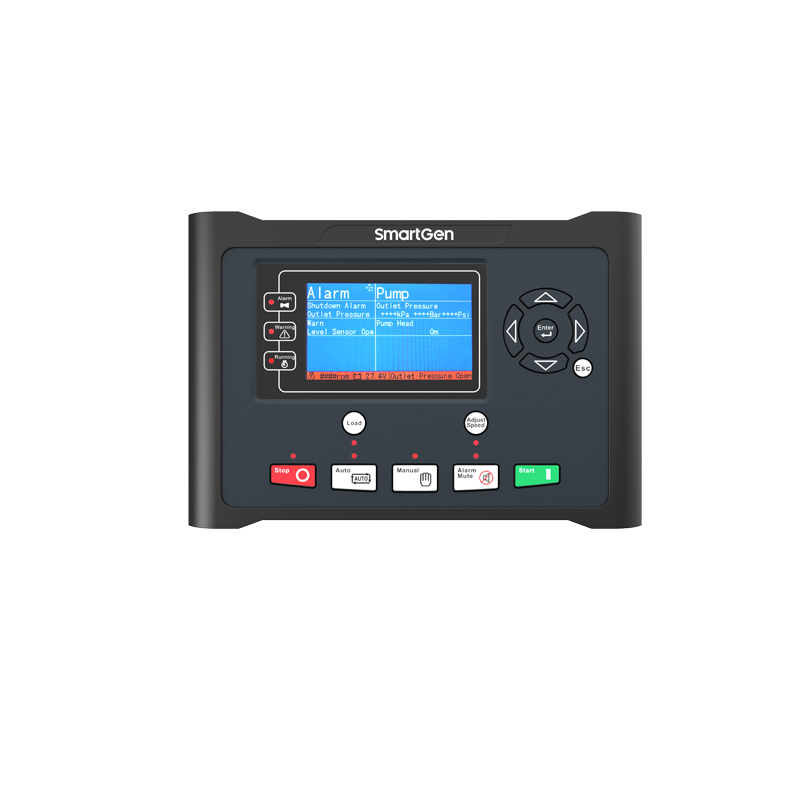

APC715

4.3 inches TFT-LCD, event logs, CANBUS, timing boot/stop, GOV

Working PowerRange : DC(8-35)V

Overall Dimension : 266*182*45

Installation Dimension : 214*160

Working Temperature : (-25~+70)°C

weight : 0.95kg

APC715 Pump Unit Controller is designed for pump systems which controlled by engine. It allows automatic start/stop, data measurement, alarm protection as well as remote control, remote measurement and remote communication function. Utilizing the GOV (Engine Speed Governor) control function, the controller is able to stabilize the outlet/inlet pressure via GOV. CANBUS (SAE J1939) interface enables the controller to communicate with various engine which fitted with J1939 interface.

APC715 Pump Unit Controller fit with LCD display, optional languages interface (including English, Chinese or other languages); simultaneously the exact parameters of pump unit and engine are indicated by the LCD display on the front panel and the controller is reliable and easy to use.

APC715 Pump Unit Controller adopt powerful 32-bit ARM microprocessor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. The majority of parameters can be configured from front panel and all the parameters can be set using PC (via USB port) and can be adjusted and monitored with the help of RS485 ports. It can be widely used in a number of pump control system with compact structure, simple connections and high reliability
