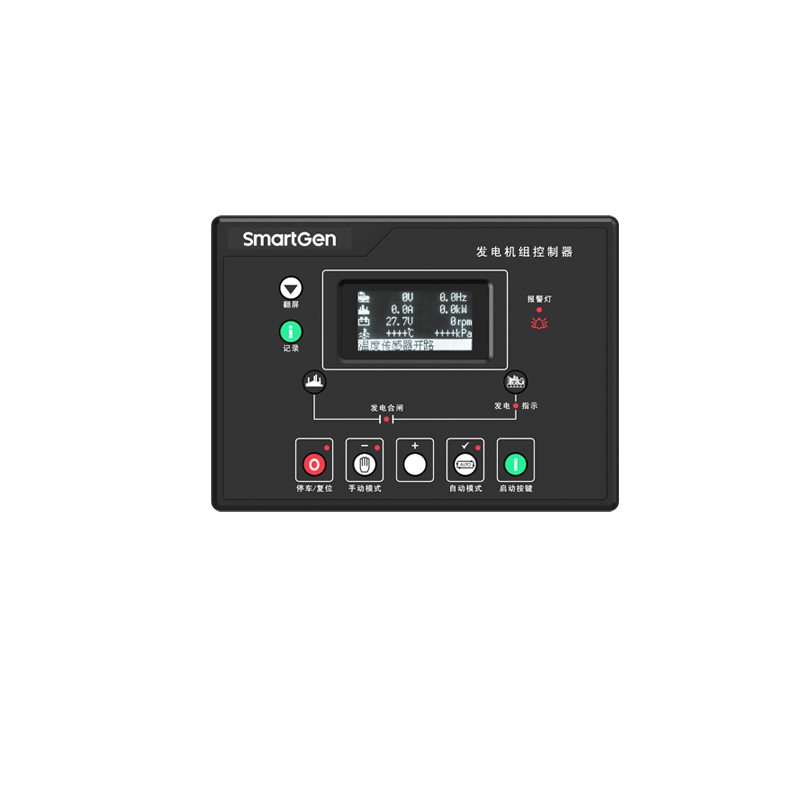

HGM8110A

Low temperature displays +RS485

Working PowerRange : DC(8-35)V

Overall Dimension : 240*172*57

Installation Dimension : 214*160

Working Temperature : (-40~+70)℃

weight : 0.8kg

HGM8110A/8120A genset controllers are especially designed for extremely high/low temperature environment (-40~+70)°C. The controllers can operate reliably in extreme temperature conditions with the help of VFD display and the components that resist extreme temperature. All display information is Chinese (English is optional). Operation information, status information and faults information are all displayed which make commissioning convenience for factory personnel. Controller can be used under complex electromagnetic interference environment with the strong ability of anti-electromagnetic interference. Easy to maintain and upgrade due to the plug-in terminal.

HGM8110A/8120A genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measuring, alarm protection and “four remotes” (remote control, remote measuring, remote communication and remote regulating).

HGM8110A/8120A genset controllers adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and threshold adjusting and etc. Majority parameters can be configured from front panel, and all parameters can be configured by RS485 interface (or RS232) to adjust via PC. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.
