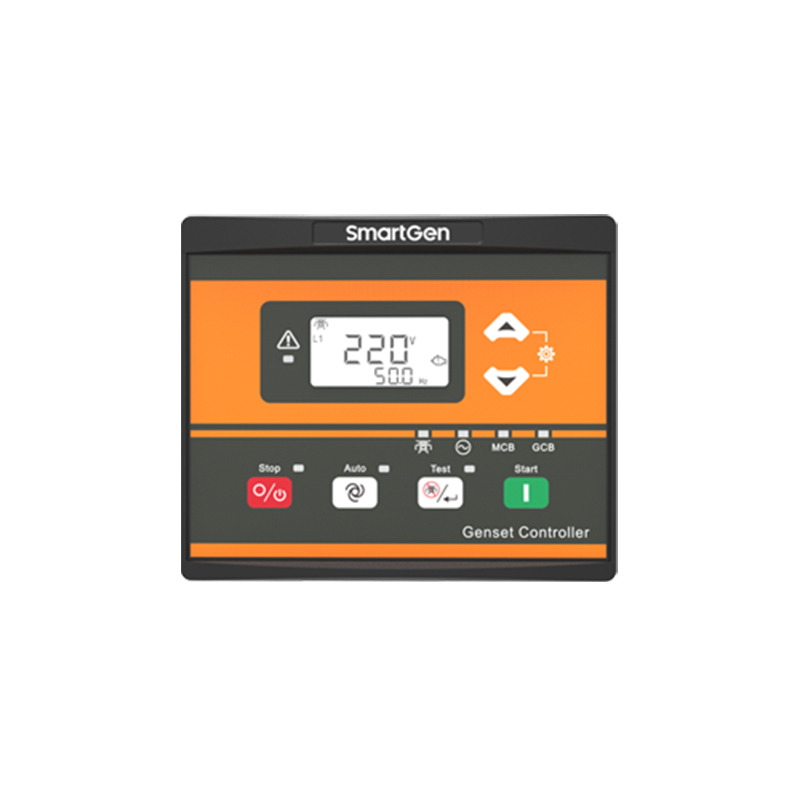

MGC320

Single unit automation + AMF

Working PowerRange : DC(8-35)V

Overall Dimension : 126*106*46.5

Installation Dimension : 111*91

Working Temperature : (-25~+70)℃

weight : 0.27kg

MGC300 Series Genset Controller is applicable for single unit automation control to realize auto start of single unit and AMF. The controller integrates digitalization with intelligence and applies LCD graphic display, which is simple for operation and reliable for running.

MGC300 Series Genset Controller applies 32-bit micro-processor technology, realizing precise measuring for various parameters, set-value adjusting, and timing, and limit value setting functions etc. A majority of parameters can be adjusted from the front panel, and all parameters can be configured by RS485 on PC. It has compact structure, simple wiring, high reliability, which can be used for all types of genset automation system.

MGC300 Series Genset Controller includes true low power consumption (power off) and feign low power consumption (awakening, but screen light not on, stop indicator flashing, not do any action).
