HGM6110N

Single unit automation + remote signal start/stop

Working PowerRange : DC(8-35)V

Overall Dimension : 209*166*45

Installation Dimension : 186*141

Working Temperature : (-25~70)℃

weight : 0.56kg

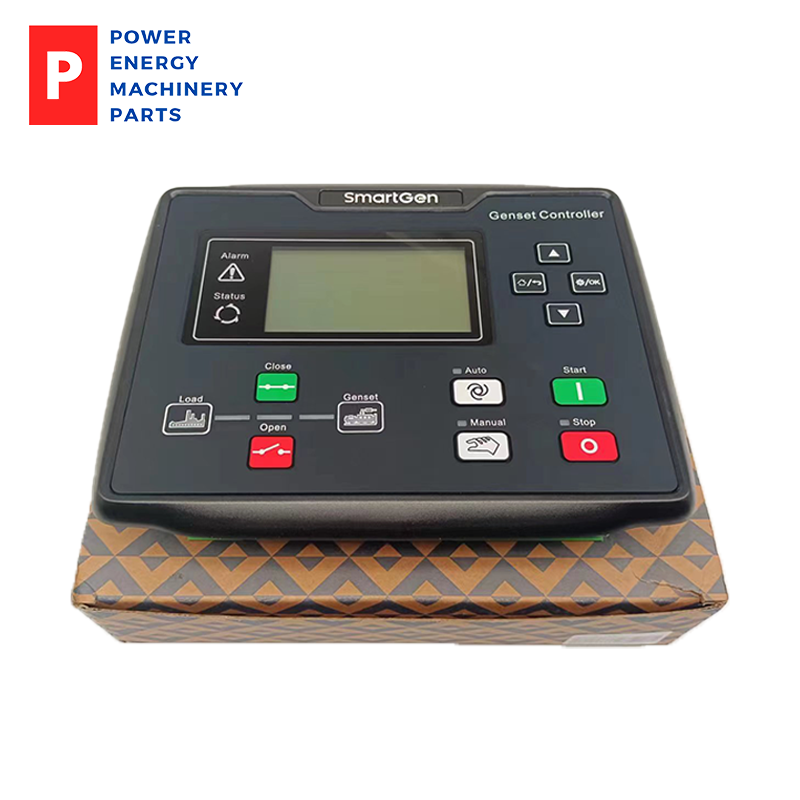

HGM6100N series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of single genset. It can carry out functions of automatic start/stop, data measurement, alarm protection and “three remote” (remote control, remote measurement and remote communication). The controller uses LCD display, optional language interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.

HGM6100N series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

PERFORMANCE AND CHARACTERISTICS

HGM6100N controller has six variants:

HGM6110N/6110NC/6110CAN: Automatic Start Module, it controls generator to start/stop by remote start signal;

HGM6120N/6120NC/6120CAN: Based on HGM6110N/6110NC/6110CAN, it adds mains AC monitoring and mains/generator automatic switching control (AMF), especially suitable for the automation system composed by mains and genset.

 NOTE1: HGM6110NC/6120NC has RS485 port, HGM6110N/6120N without.

HGM6110CAN/6120CAN has CAN port, HGM6110N/6120N and HGM6110NC/6120NC without.

 NOTE2: HGM6110/6120 is taken as an example to describe in this manual.

Main characteristics are as following:

1. 132x64 LCD display with backlight, optional language interface (Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French), push-button operation;

2. Acrylic screen, improved wearable and scratch resistance property;

3. Silica-gel panel and keys can well adapt to higher and lower temperature;

4. RS485 communication port enables “three remote” functions via MODBUS protocol;

5. CANBUS port which can be connected to ECU with J1939, it not only can monitor frequently-used data (such as water temperature, oil pressure, speed and fuel consumption, etc.) but also can control start, stop, high speed and low speed (controller with CANBUS port is needed) via CANBUS port;

6. Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz system;

7. Can measure and display 3 phase voltage, 3 phase current, frequency, power parameter of mains/gens;

   Mains                                 Generator

   Line voltage (Uab, Ubc, and Uca)        Line voltage (Uab, Ubc, and Uca)

   Phase voltage (Ua, Ub, and Uc)          Phase voltage (Ua, Ub, and Uc)

   Frequency   Hz                      Frequency   Hz

   Phase sequence                      Phase sequence

   Load

   Current   IA, IB, IC

   Each and total active power  kW

   Reactive power  kvar

   Apparent power  kVA

   Power factor     PF

   Generator accumulated energy   kWh

   Output percentage with load     %

8. For mains, genset has functions of over/under voltage and loss of phase; For gens, genset has functions of over/under voltage, over/under frequency, over current and over power;

9. Precision measure and display of parameters about engine;

   Temp. (WT)           °C/°F

   Oil pressure (OP)       kPa/psi/bar

   Fuel level (FL)          %           Fuel remains     L

   Speed (SPD)           r/min

   Battery Voltage (VB)     V

   Charger Voltage (VD)    V

   Accumulated running hours

   Accumulated start times

10. Control and protection function: Automatic start/stop of genset, load transfer (ATS control) and perfect fault display and protection;

11. With ETS, idle control, pre-heat control, speed raise/drop control, all of them are relay outputs;

12. Parameter setting: Allow user to modify setting and store them in internal FLASH memory. The parameters cannot be lost even when power off. All of parameters can be set not only from the front panel, but also adjusted through USB interface (or RS485 interface) via PC;

13. Multiple sensors of temperature, pressure and fuel level can be used directly, parameters can be defined by user;

14. Multiple conditions of crank disconnect (speed, oil pressure, frequency) can be selected;

15. With emergency start function;

16. With flywheel teeth numbers automatic identification function;

17. Power supply range: (8~35)VDC, accommodating to different starting battery voltage environment;

18. All parameters use digital modulation, instead of analog modulation using conventional potentiometer, having improved reliability and stability;

19. With maintenance function. Types (date or running time) can be selected and actions (warning or alarm shutdown) can be set when maintenance time out;

20. Event log, real-time clock, scheduled start & stop function (can be set as start unit once a day/week/month whether with load or not);

21. Add rubber gasket between shell and controller screen, the waterproof can reach IP65;

22. Controller is fixed by metal fixing clips;

23. Modular design, flame-retardant ABS shell, pluggable terminal, embedded mounting, compact structure and easy installation.
