Product Introduction:

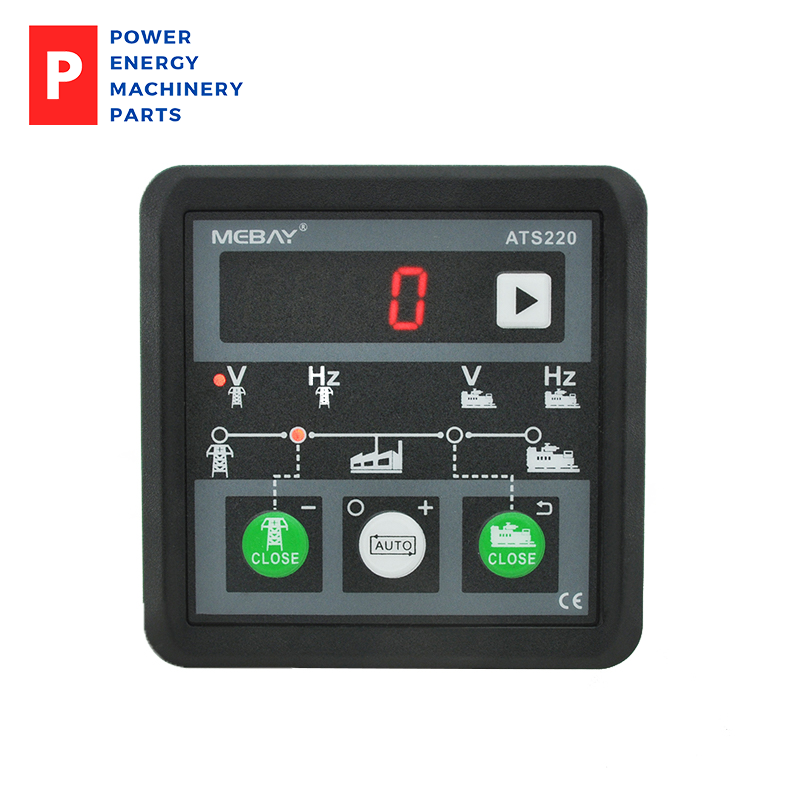

ATS220 is a mains/generation automatic switching controller, which can automatically or manually control the ATS dual power switching switch. It is suitable for applications where one mains power and one power generation are used. It has a 4-digit LED digital tube that can display single-phase power generation voltage, power generation frequency, mains voltage, and mains frequency; the LED indicator light indicates the working status of the ATS switch;

All parameters of the controller can be adjusted through the buttons on the controller panel or using a PC, which can meet the different application requirements of users.

Performance and features


It is controlled by 32-bit imported high-performance single-chip microcomputer.

Wide voltage (8-36VDC) operating range.

Equipped with 4-digit LED digital tube, which can display the voltage and frequency of mains and power generation.

Equipped with 3 passive relay outputs, maximum current 5A (250VAC).

Equipped with 1 programmable switch input.

All parameters can be set through the panel keys.

Equipped with a waterproof ring as standard, the panel protection performance reaches IP54 level after installation.

Modular design, all connections are completed through European terminal blocks, easy to install.

It has the function of simulating mains power and can flexibly select the starting conditions of the unit.


Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 3W

Mains voltage input

One phase two wires 30VAC-300VAC (ph-N)

Generator voltage input

One phase two wires 30VAC-300VAC (ph-N)

Generator closing output

Relay passive contact output, maximum 5Amp (250VAC)

Mains power closing output

Relay passive contact output, maximum 5Amp (250VAC)

Unit startup output

Relay passive contact output, maximum 5Amp (250VAC)

Switch input

Effective when connected to the negative pole of the battery

working conditions

-30-70℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Dimensions

78mm*78mm*55mm

Hole Size

67mm*67mm

weight

0.3Kg
