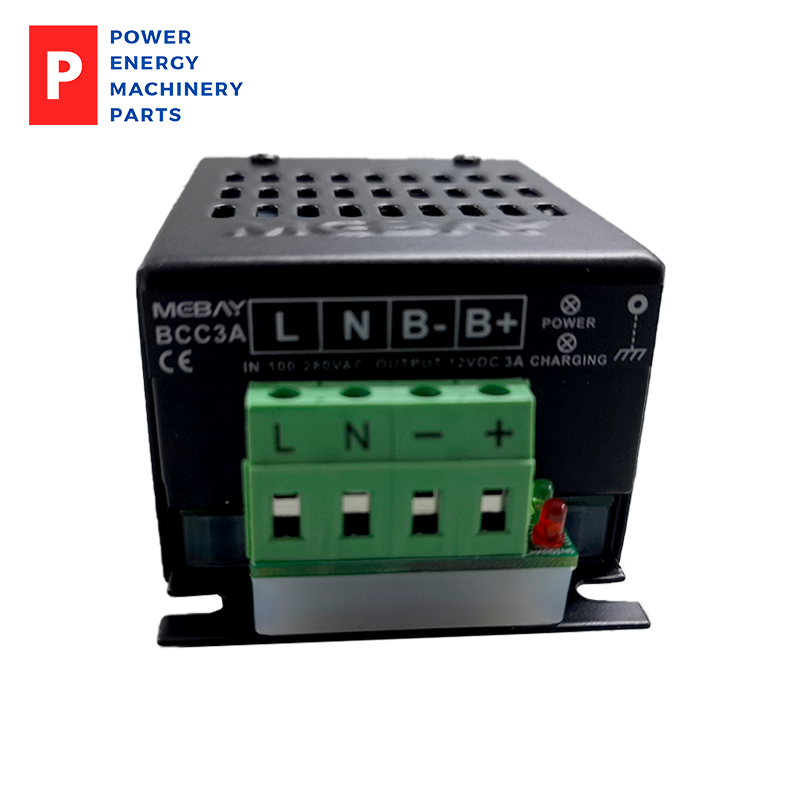

This charger is specially designed for lead-acid batteries used in engines. It adopts a three-stage intelligent control method of constant current fast charging, current limiting, and trickle and float charging. It can be charged for a long time without causing damage to the battery, and it can maintain the full charge state of the battery and ensure the service life of the battery. This charger can be used in parallel with the engine charging generator, and there is no need to disconnect the charger while the engine is running.

Performance and features

Using metal shell, it has good heat dissipation effect and strong anti-interference ability;

Adopting advanced switching power supply type results, wide AC input voltage range;

Three-stage intelligent charging automatically maintains battery power;

With short circuit and anti-reverse protection functions;

With charging voltage fine-tuning function;

Equipped with LED status display;

Charging characteristic curve

This charger is designed according to the characteristics of the lead-acid battery used in the engine, and adopts a three-stage intelligent control method of constant current fast charging, current limiting, and trickle float charging. When the battery voltage is lower than the preset value, it is the constant current charging stage; when the battery voltage is higher than the preset value, the charging current decreases with the increase of the battery voltage and enters the current limiting charging stage; the battery voltage gradually increases to reach the predetermined value. Constant voltage value. When the charging current is less than 0.3A, the charging indicator light goes out and the float charge stage is entered. The subsequent charging current only offsets the self-discharge of the battery and maintains the battery in a fully charged state. There is no need to disconnect the charger, which is harmful to the battery. Life span is not affected.

Specifications

category

project

12V

Input parameters

Nominal input voltage

AC100V to 280V continuous power supply

Maximum input voltage

AC90V to 305V continuous power supply

Enter AC frequency

50Hz/60Hz

Maximum input current

1A

efficiency

>85%

Output parameters

Output current range

3A, error ±5%

Maximum output power

40W

No-load output voltage

13.8V, error ±1%

Insulating properties

Insulation resistance

Input and output, input and shell are all DC500V 1min, and the insulation resistance RL ≥ 50MΩ.

Insulation voltage

Input and output, input and housing are both AC1500V 50Hz 1min, leakage current IL≤3.5mA.

working environment

Operating temperature

-30～55°C

Storage temperature

-40～85°C

Working humidity

20%RH～95%RH (no condensation)

Shape parameters

Dimensions

88mm×64mm×42mm (length×width×height)

Installation hole distance

77mm×44mm(length×width)

weight

0.3Kg
