I. Overview:

  This series of controllers is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline, and gas generator sets and has parameter setting functions.

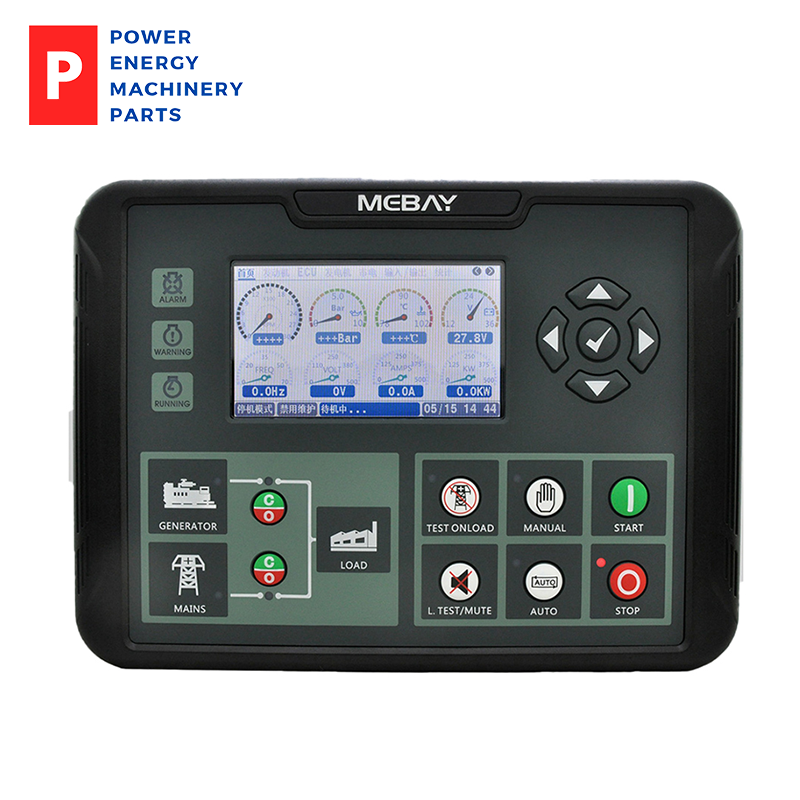

  This controller uses a 4.3-inch TFT color large-screen LCD to display relevant parameters of the generator set. It has a new and original UI design. The parameters are displayed through analog pointers and numbers. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly.

The controller has built-in simplified Chinese, traditional Chinese, English, Spanish, and Russian display interfaces to choose from, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel, or adjusted and monitored using a PC through the USB port or RS485 interface. It can be widely used in various types of generator set automation systems.

2. Performance and features
The DC9xD series is available in four models:

  DC90D: used for stand-alone automation, controlling the automatic starting and stopping of the generator set through remote start signals;

  DC92D: Based on DC90D, it adds mains monitoring and mains/generator automatic switching control (AMF) functions, and is suitable for a single-machine automation system consisting of one mains supply and one generator set;

  DC90DR: Add RS485 interface on the basis of DC90D;

  DC92DR: Add RS485 interface on the basis of DC92D;
