Overview:

This series of controllers is specially designed for starting, stopping, parameter monitoring and fault monitoring of generator sets and has parameter setting functions.

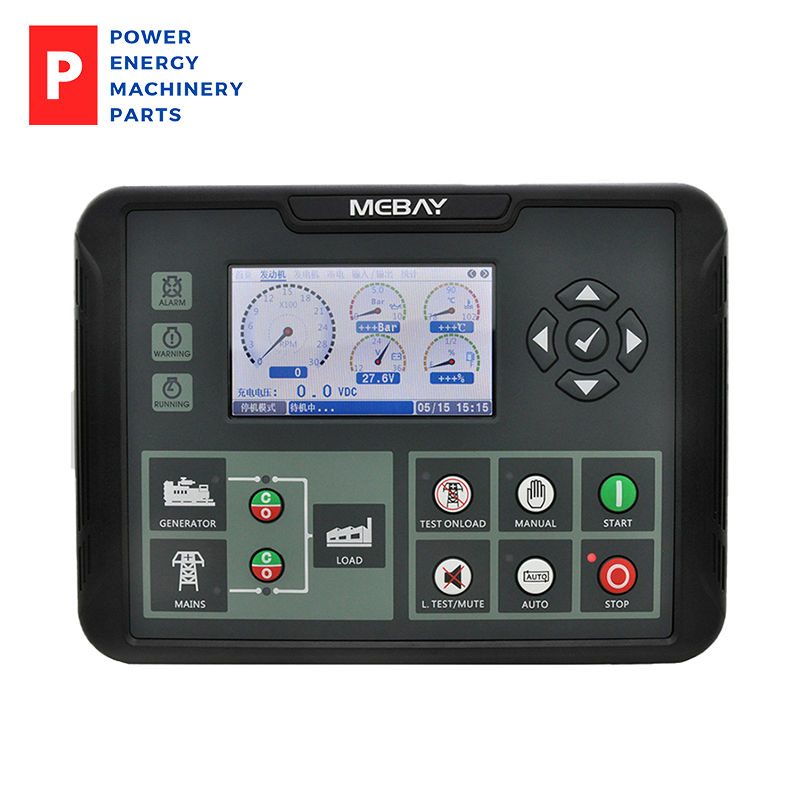

This controller uses a dot matrix LCD screen to display relevant parameters of the generator set, and displays relevant fault status through the LCD screen. It can effectively implement protective shutdown when the generator set is not working properly.

The controller uses a liquid crystal display, with built-in simplified Chinese, English and other display interfaces to choose from, and any language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel or adjusted and monitored using a PC. It can be widely used in various types of generator set automation systems.

main feature

Adopts original imported high-performance single-chip microcomputer control;

3.0-inch white backlit LCD display, switchable between Chinese and English, and various languages can be customized according to customer needs;

Built-in real-time clock, with duty planning and maintenance planning functions: duty planning and maintenance planning can be realized through settings, thereby arranging monthly or weekly duty plans for generator sets, and arranging monthly or weekly maintenance plans for generators , in order to use the generator set more flexibly;

Equipped with a black box function, it can save the relevant parameters of the unit when a fault alarm occurs in real time, making it easy to find the cause of the unit failure;

Parameter setting function: allows users to change and set their parameters. All parameters can be adjusted from the controller or using a PC, which facilitates on-site debugging and mass production.

Equipped with 5 relay outputs, 3 relay functions are configurable, and each channel has more than 10 optional functions;

Equipped with 5 four-way configurable functional switching inputs;

Equipped with 3-channel sensor analog input interface, three display units can be configured;

Collect and display a variety of engine and generator parameters;

The sensor curve can be customized through panel buttons and PC software;

Suitable for three-phase four-wire, single-phase two-wire, two-phase three-wire (120V/240V) power supply 50/60HZ system;

Various combinations of starting conditions (speed, frequency, oil pressure) are available;

Control and protection functions: realize automatic start/stop of the generator set, ATS switching and complete fault display and protection functions;

Equipped with a waterproof ring as standard, the protection performance of the panel after installation reaches IP54 level;

Modular design: All connections are completed through European-style terminal blocks, making it very easy and convenient to assemble, connect, repair and replace the equipment;

Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 5W

AC voltage input

One phase two wires 20VAC-276VAC (ph-N)

Two-phase three-wire 20VAC-276VAC (ph-N)

Three-phase four-wire 20VAC-276VAC (ph-N)

Engine speed signal range

150-9000Hz

Maximum cumulative running time

99999.9 hours (minimum storage time 6 minutes)

fuel output

5Amp DC+VE supply voltage output

Motor output

5Amp DC+VE supply voltage output

Configurable relay 1

5Amp DC+VE supply voltage output

Configurable relay 2

5Amp DC+VE supply voltage output

Configurable relay 3

5Amp DC+VE supply voltage output

Excitation control

0.5Amp DC+VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

working conditions

-20-65℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Dimensions

240mm*172mm

Hole Size

220mm*160mm

weight

1Kg
