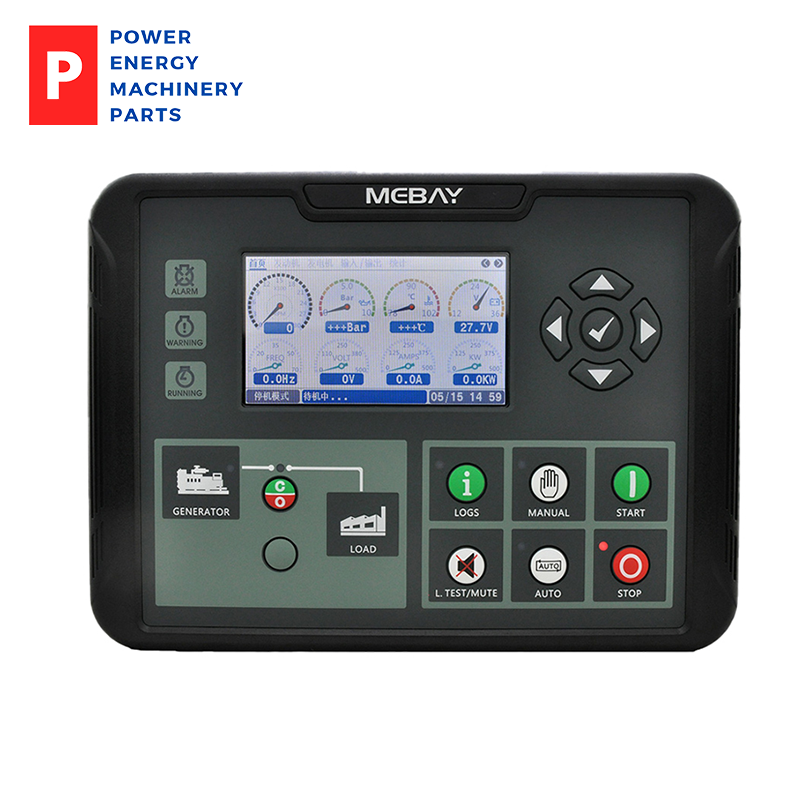

DC80D type generator set controller

Overview:

This series of controllers is specially designed for starting, stopping, parameter monitoring and fault monitoring of generator sets and has parameter setting functions.

This controller uses a dot matrix LCD screen to display relevant parameters of the generator set, and displays relevant fault status through the LCD screen. It can effectively implement protective shutdown when the generator set is not working properly.

The controller uses a liquid crystal display, with built-in simplified Chinese, English and other display interfaces to choose from, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel or adjusted and monitored using a PC. It can be widely used in various types of generator set automation systems.

Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 5W

AC voltage input

One phase two wires 20VAC-276VAC (ph-N)

Two-phase three-wire 20VAC-276VAC (ph-N)

Three-phase four-wire 20VAC-276VAC (ph-N)

Engine speed signal range

150-9000Hz

Maximum cumulative running time

99999.9 hours (minimum storage time 6 minutes)

fuel output

5Amp DC+VE supply voltage output

Motor output

5Amp DC+VE supply voltage output

Configurable relay 1

5Amp DC+VE supply voltage output

Configurable relay 2

5Amp DC+VE supply voltage output

Configurable relay 3

5Amp DC+VE supply voltage output

Excitation control

0.5Amp DC+VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

working conditions

-20-65℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Dimensions

240mm*172mm

Hole Size

220mm*160mm

weight

1Kg
