Overview:

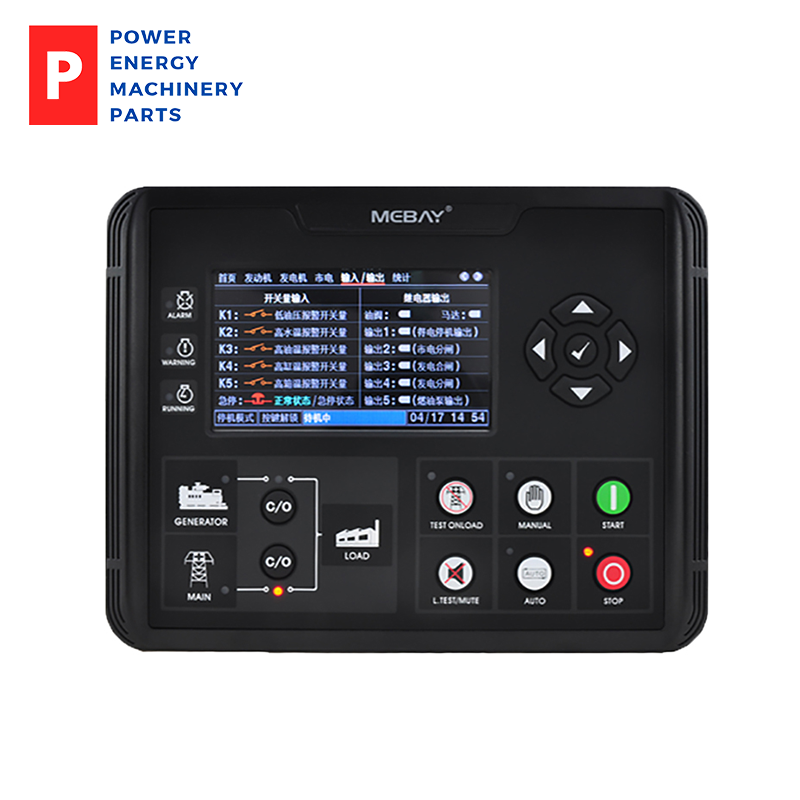

This module mainly cooperates with the DC7xD series controller to realize remote data monitoring and operation control functions; it adopts the RS485 interface and the universal MODBUS protocol, and can realize the monitoring of up to four hosts by one slave machine.

A 4.3-inch TFT color large-screen LCD is used to display host-related parameters, and the parameters are displayed through analog pointers and numbers. Through the fault list, the LCD screen can display multiple current fault statuses at the same time.

The module has built-in display interfaces in Simplified Chinese and English, and the language interface can be customized according to customer requirements.

Performance and features

The main features are as follows:

Controlled by a 32-bit imported high-performance microcontroller;

4.3-inch TFT color large-screen LCD display, with built-in switching between Chinese and English, and various languages can be customized according to needs;

The UI interface of pointer instrument and digital display is a new original design that integrates dynamics and accuracy;

The screen protection is made of hard screen acrylic material, which is wear-resistant and scratch-resistant;

Using silicone panel, it is effectively waterproof, oil-proof and UV-proof, has good operating feel and long service life;

One-to-many realizes remote real-time data display and unit control;

Isolated RS485 interface, simple wiring, stable data transmission, and strong anti-interference ability;

Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 5W

working conditions

-20-65℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Dimensions

210mm*160mm*50mm

Hole Size

186mm*142mm

weight

0.85Kg
