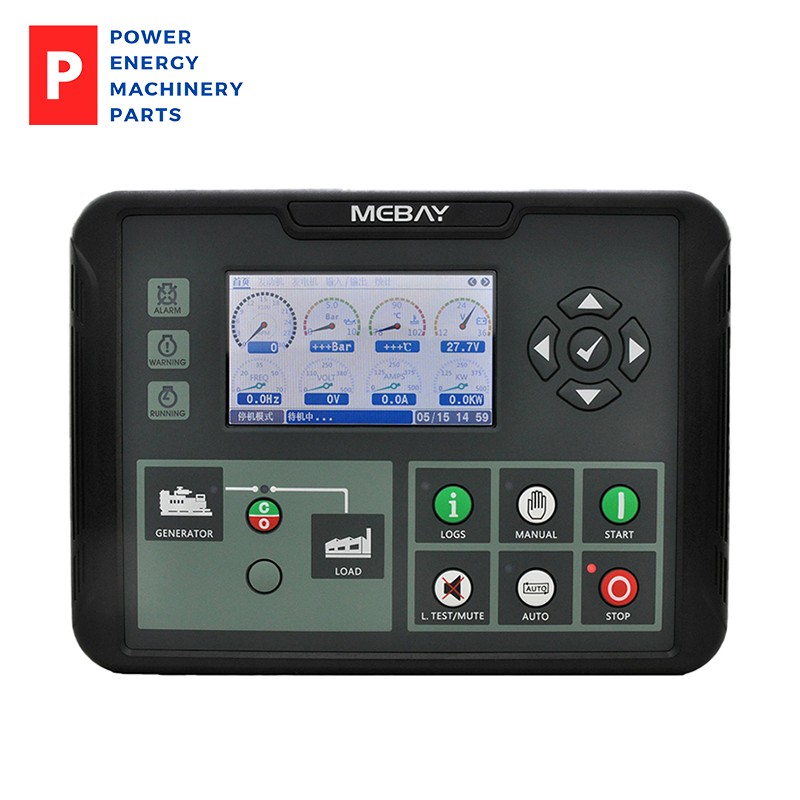

Generator controller DC80DR MK2,which is specialized for Diesel / Gasoline / Gas Genset Start, Stop,Parameters monitoring, faults-checking as well as data setting. It is with RS485 port to realize remote control of genset.

Personalized setting

☑ Brand new UI design is adapted
☑ Customers' Own logo can be set at the starting page
☑ Different language for your options (English, Spainsh, Turkish, Russian, Chinese)

Main Features:

☑4.3" LCD Colorful Screen

☑Real Time Clock

☑3 class maitenance countdown

☑Black Box function

☑Totally 7 relay’s output, among which 5 relay output can be self-configurable, each relay can be set as max 50 functions, besides, there are 2 groups as non-contact terminals.☑5 relays can be set as switch value input, and function configurable.☑3 sensor simulation input connectors, various kinds of units can be set.

☑Adapt to 3P4W, 1P2W, 2P3W (120V/240V, 50/60HZ)

☑Various of crank conditions (RPM, Frequency, Oil Pressure) can be chosen.

☑Control Protection: Auto Start/Stop of genset, load transfer (ATS control) and perfect failure display and protection.

Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 5W

AC voltage input

One phase two wires 20VAC-276VAC (ph-N)

Two-phase three-wire 20VAC-276VAC (ph-N)

Three-phase four-wire 20VAC-276VAC (ph-N)

Engine speed signal range

150-9000Hz

Maximum cumulative running time

99999.9 hours (minimum storage time 6 minutes)

fuel output

5Amp DC+VE supply voltage output

Motor output

5Amp DC+VE supply voltage output

Configurable relay 1

5Amp DC+VE supply voltage output

Configurable relay 2

5Amp DC+VE supply voltage output

Configurable relay 3

5Amp DC+VE supply voltage output

Excitation control

0.5Amp DC+VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

working conditions

-20-65℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Dimensions

240mm*172mm

Hole Size

220mm*160mm

weight

1Kg
