Product Introduction:

Overview:

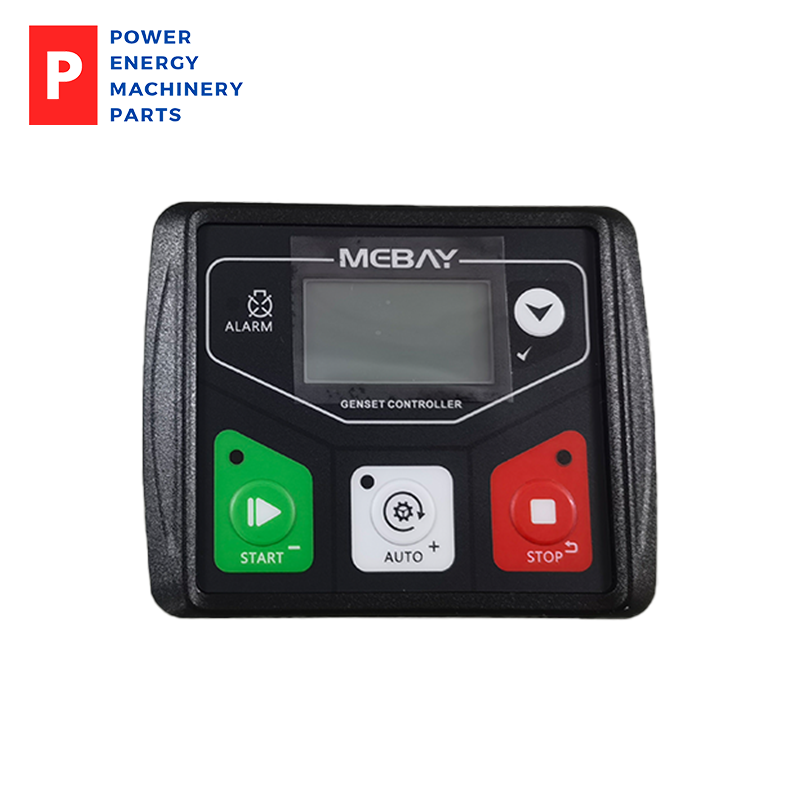

This controller is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline and gas generator sets. The controller has manual control and automatic control functions, and can control the automatic starting and stopping of the generator set through remote start signals, and is suitable for single-machine automation;

This controller uses high-resolution dot matrix LCD to display relevant parameters of the generator set. The LCD screen can display multiple current fault states at the same time, and can effectively implement protective shutdown when the generator set is not working properly.

The controller has built-in display interfaces in Simplified Chinese and English, and the language interface can be customized according to customer requirements. All parameters of the controller can be adjusted through the buttons on the controller panel or through the USB interface using a PC. It can be widely used in various types of generator set automation systems.

Performance and features

Controlled by a 32-bit imported high-performance microcontroller;

High-resolution dot matrix LCD display with Chinese and English switches, and the language can be customized according to customer needs;

The startup interface can be customized to display user LOGO or contact information;

The panel is made of PC material, which is effectively waterproof, oil-proof and UV-proof, has good operating feel and long service life;

Control and protection functions: realize automatic starting/stopping of the generator set, complete fault display and protection functions;

Various combinations of starting conditions (speed, frequency, oil pressure) are available;

Collect and display a variety of engine and generator parameters;

The setting interface adopts a multi-level menu-type classification design, which is convenient and fast;

Equipped with 5 relay outputs, 3 of which are configurable, with more than ten optional functions for each channel;

It has 4 configurable inputs, three of which are analog and switch values and can be reused;

Equipped with a waterproof ring as standard, the protection performance of the panel after installation reaches IP54 level;

Modular design: All connections are completed through European-style terminal blocks, making it very easy and convenient to assemble, connect, repair and replace the equipment;

Parameter display

Engine speed;

Engine oil pressure;

Engine water temperature;

Engine fuel level;

Engine battery voltage;

Generator voltage L-N;

Generator current A;

Generator frequency Hz;

Cumulative number of starts of the unit;

The current operating time of the unit;

Controller power-on time;

Alarm protection

speeding

Underspeed

low oil pressure

High temperature

low fuel level

Battery overvoltage

Battery low voltage

Overclocking

Underfrequency

Generation overvoltage

Generation undervoltage

Load overcurrent

Sensor open circuit

Speed signal lost

External instant alarm

emergency pull over

Low water level alarm

Start failed

Charger failed to charge

Shutdown failed

Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 2W

AC voltage input

One phase two wires 20VAC-450VAC (ph-N)

Current transformer secondary current

Rating: 5A

Engine speed signal range

50-9000Hz

Maximum cumulative running time

9999.9 hours (minimum storage time 6 minutes)

fuel output

1Amp DC+VE supply voltage output

Motor output

1Amp DC+VE supply voltage output

Configurable relay 1

1Amp DC+VE supply voltage output

Configurable relay 2

1Amp DC+VE supply voltage output

Configurable relay 3

1Amp DC+VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

working conditions

-20-65℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Dielectric strength

Apply AC1.5kV voltage between the AC high-voltage terminal and the low-voltage terminal, and the leakage current shall not exceed 3mA within 1 minute.

Dimensions

106mm×86mm×45mm

Hole Size

78mm×66mm

weight

0.25Kg
