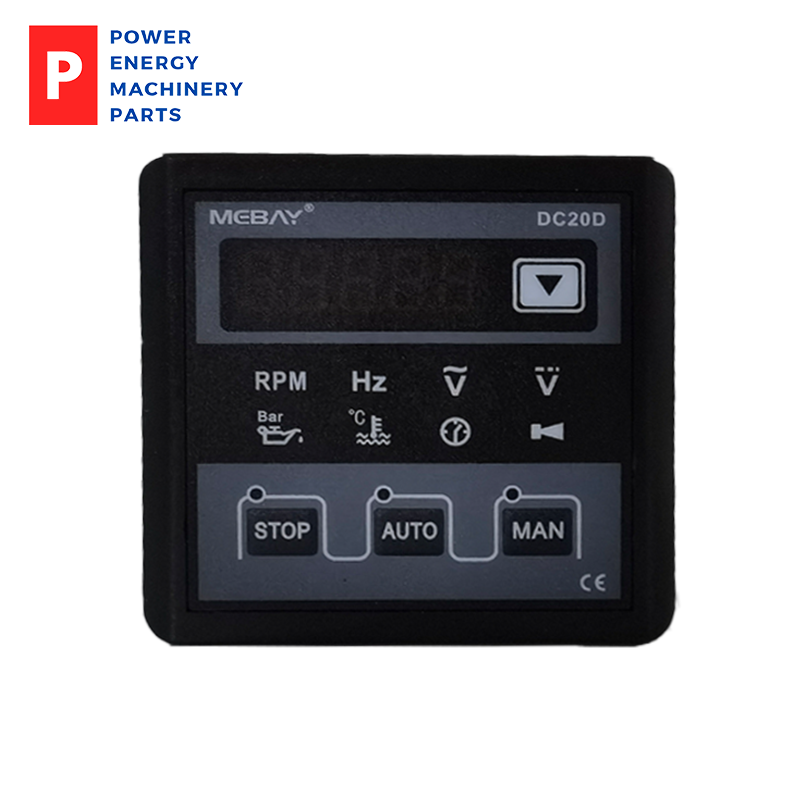

MEBAY Controller DC20D
Product Introduction:
DC20D is a controller for diesel generator sets. It has automatic start and stop, protection and alarm indication functions. The panel contains DC power supply and operating status indication functions; the monitoring part includes fault indications for overspeed/overclocking, over-generator voltage, low oil pressure, high water temperature, low water level, start failure, parking timeout, emergency stop alarm and low battery voltage, and more. It is helpful to judge the status of engine and generator.
The output contacts use relays, which can withstand large output currents, and system parameters can be set according to the buttons to meet applications in different situations.
main feature:
Microcomputer control
Manual/automatic start and stop
5-digit LED digital tube displays unit operating status and parameters
LED indicator light and fault code display alarm indication
Equipped with two sets of programmable output relays
Can be used on multiple models through customized settings
control function:
Turning automatic control
Start delay control
Local manual start/stop
Remote automatic start/stop
Automatically deactivates the starter motor, and the oil pressure switch deactivates the motor
Preheat control
Cooling machine control
Parking/idle control
Parameter display:
Engine speed
Generator frequency
Generator AC voltage
Engine battery voltage
Engine oil pressure
Engine water temperature
Cumulative running time
Protective function:
Low lubricating oil pressure protection
Cooling water level low protection
High cooling water temperature protection
Generator overvoltage protection
Overclocking/overspeeding protection
Generator set emergency shutdown
Engine shutdown failed
Engine start failed
Low fuel level warning
Low battery voltage warning
Configuration method:
Configure parameters through the keys on the front panel of the controller
Specifications:
Power supply: DC 8~36 V
Power consumption: MAX: 3 W
Frequency signal input: 10~70 Hz,
Input voltage range: AC 20~276 V
Relay output:
Start output: MAX 3.5A
Fuel output: MAX 3.5A
Configurable relay output: MAX 3.5A
Excitation output: MAX 3.5A
Size: 78mm*75mm*76mm
Installation opening: 67mm * 67mm
Operating temperature range: -20℃ ~ 65℃
Storage conditions: -40℃~85℃
Weight: 200 g
Panel: Chinese and English optional
