Product Introduction:

Overview

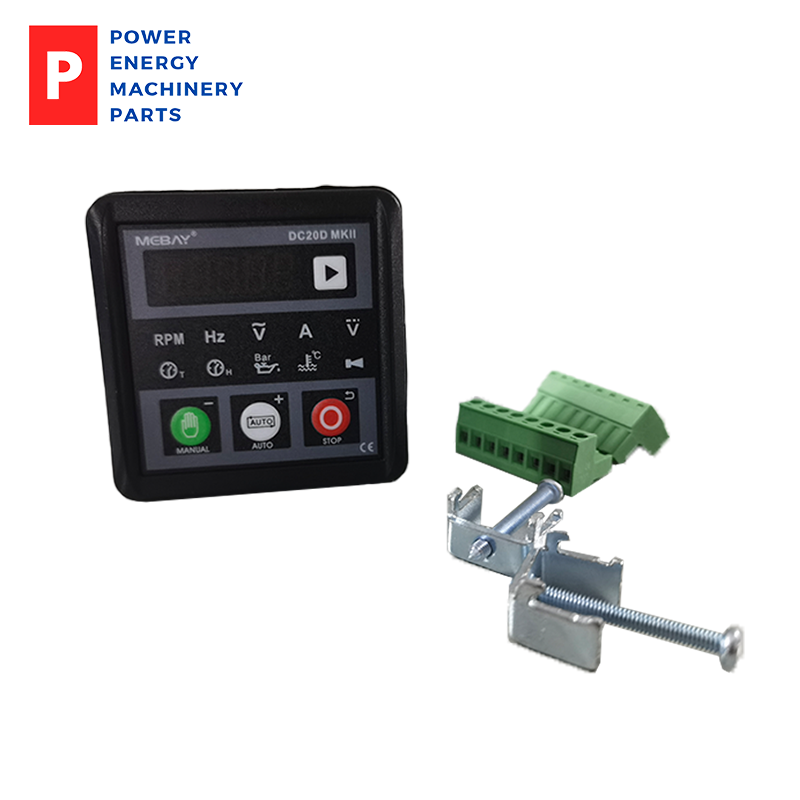

This series of controllers is specially designed for starting, stopping, parameter monitoring and fault monitoring of diesel, gasoline, and gas generator sets and has parameter setting functions.

This controller uses a five-digit digital tube to display relevant parameters of the generator set, and the parameters are displayed digitally. The digital tube can display the current fault status at the same time, and can effectively implement protective shutdown when the generator set is not working properly.

All parameters of the controller can be adjusted through the buttons on the controller panel, or adjusted and monitored using a PC through the RS485 interface. It can be widely used in various types of generator set automation systems.

main feature

Controlled by a 32-bit imported high-performance microcontroller;

Collect and display a variety of engine and generator parameters;

Equipped with 4 relay outputs, 2 of which are configurable;

Equipped with 2 channels of sensors and 3 channels of switch input;

Various combinations of starting conditions (speed, frequency, oil pressure) are available;

Control and protection functions: realize automatic starting/stopping of the generator set and protection functions;

Equipped with a waterproof ring as standard, the protection performance of the panel after installation reaches IP54 level;

Modular design: All connections are completed through European-style terminal blocks, making it very easy and convenient to assemble, connect, repair and replace the equipment;

Parameter display

Engine speed;

Engine oil pressure;

Engine cooling water temperature;

Engine battery voltage;

Generator voltage;

Generator single-phase current A;

Generator frequency Hz;

This running time;

Accumulated running time;

Alarm protection

emergency pull over

Overclocking

Underfrequency

Generation overvoltage

Generation undervoltage

speeding

Underspeed

Load overcurrent

low oil pressure

high water temperature

High oil temperature

low fuel level

Sensor open circuit

Speed signal lost

Low water level alarm

Start failed

Shutdown failed

Low battery voltage warning

Specifications

project

Parameters

Operating Voltage

DC8V to 36V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 3W

AC voltage input

20VAC-450VAC 10-70Hz

Current measurement range

0-2000A, current transformer secondary 5A

Engine speed signal range

30-9999Hz

Maximum cumulative running time

99999 hours (minimum storage time 6 minutes)

Oil valve output

Maximum 5Amp, DC+VE supply voltage output

Motor output

Maximum 5Amp, DC+VE supply voltage output

Configurable relay 1

Maximum 2.5Amp, DC+VE supply voltage output

Configurable relay 2

Maximum 2.5Amp, DC+VE supply voltage output

Excitation output

Maximum 80mA, DC +VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

working conditions

-30-65℃

storage conditions

-40-85℃

Protection level

IP54: When a waterproof ring is installed between the controller and the control panel.

Insulation level

When AC2.2kV voltage is applied between the AC high-voltage terminal and the low-voltage terminal, the leakage current shall not exceed 3mA within 1 minute.

Dimensions

78mm*78mm*55mm

Hole Size

67mm*67mm

weight

0.25Kg
