Overview:

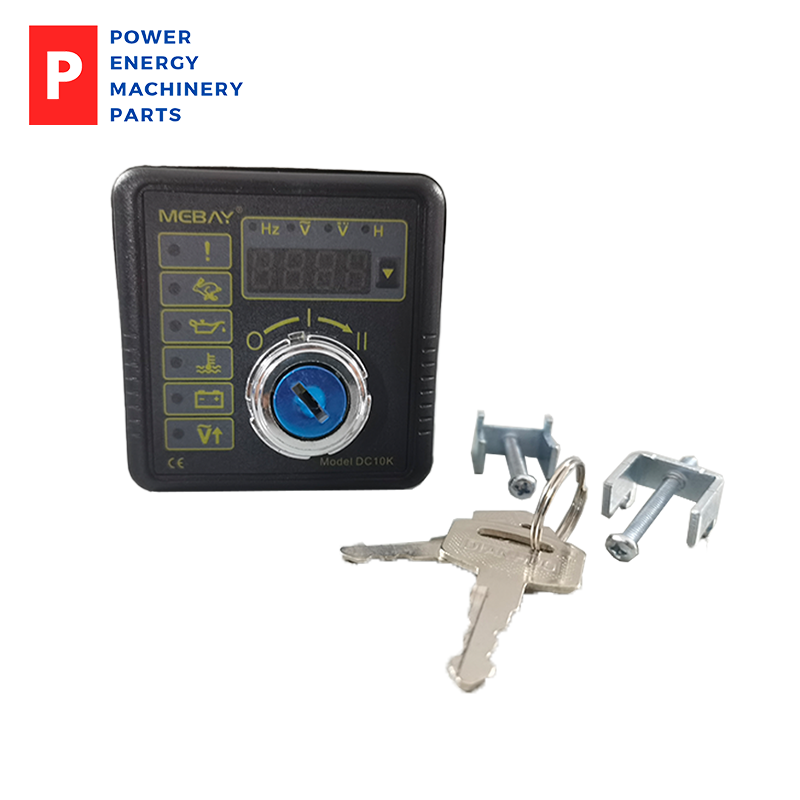

DC10K is a controller for manual engine start and stop. The 4-digit LED digital tube displays the frequency, voltage, battery voltage, and accumulated working time of the generator set. It has a variety of parking protection and alarm indication functions, and can conveniently monitor the working status of the generator set.

The controller can be connected to the computer through a data cable, and the controller parameters can be set through the software to facilitate matching of generator sets with more specifications.

main feature:

Controlled by a 32-bit imported high-performance microcontroller;

4-digit digital tube display, can be switched automatically or manually;

Using car starter key, durable;

Equipped with parameter setting function, parameters can be set through computer connection;

Equipped with a variety of alarm protection functions;

Equipped with a waterproof ring as standard, the rear panel is splash-proof after installation;

All connections are completed through European-style terminal blocks, making it very easy and convenient to assemble, connect, repair and replace the equipment;

Parameter display:

Generator voltage V;

Generator frequency Hz;

Engine battery voltage V;

The cumulative operating time of the unit is H;

Alarm protection:

speeding

Overclocking

low oil pressure

high water temperature

External instant parking alarm

Generation overvoltage

Charging failure warning

Specifications:

project

Parameters

Operating Voltage

DC8V to 33V continuous power supply

Machine power consumption

Standby: 24V: MAX 1W

Operation: 24V: MAX 2W

AC voltage input

One phase two wires 15VAC-300VAC 50/60Hz

Engine speed signal range

300-10000Hz

Maximum cumulative running time

9999 hours (minimum storage time 6 minutes)

fuel output

Max 16Amp DC+VE supply voltage output

Motor output

Max 10Amp DC+VE supply voltage output

Alarm Output

Max 16Amp DC+VE supply voltage output

Excitation output

Maximum 80mA DC+VE supply voltage output

Switch input

Effective when connected to the negative pole of the battery

Insulation level

When AC2.2kV voltage is applied between the AC high-voltage terminal and the low-voltage terminal, the leakage current shall not exceed 3mA within 1 minute.

working conditions

-30-75℃

storage conditions

-40-85℃

Dimensions

78mm×78mm×72mm

Hole Size

67mm×67mm

weight

0.28Kg
