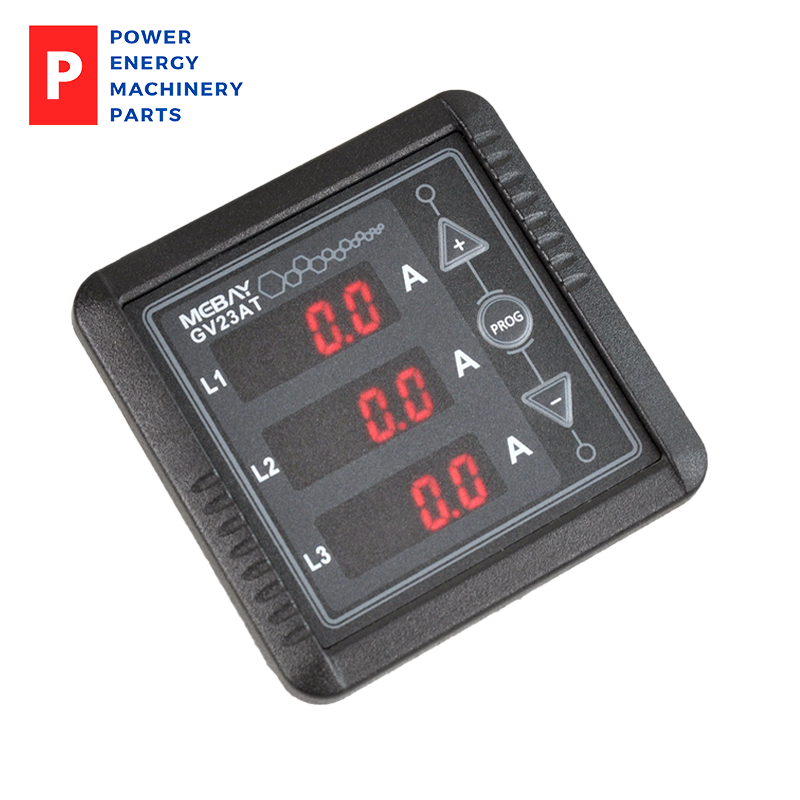

1. Module Overview

GV23AT MK2 is a lightweight, low-cost meter for measuring and displaying three-phase AC current. It can replace the traditional pointer meter. It has digital display and convenient and intuitive reading. It can be configured to adapt to a variety of current transformers.

2. Functional features

4-digit high-brightness LED digital tube displays the measured value;

3-phase current independent display;

AC power supply;

AC transformer ratio can be set;

Wide voltage operating range.

3. Parameter display

L1 AC current;

L2 AC current;

L3 AC current;

4. Measuring range and accuracy

Current: 0-9999A, error ≤±2.5%

5. Specifications

Working power supply: AC 165～275 V, 40-70HZ

Power consumption: MAX: 1 W

Operating temperature range: -30℃ ~ 65℃

Volume size (W * H * D): 78mm * 75mm * 76mm

Protection level: IP65 (front panel after installing waterproof ring)

Installation opening (W * H): 67mm * 67mm

Weight: 110g
