Module overview

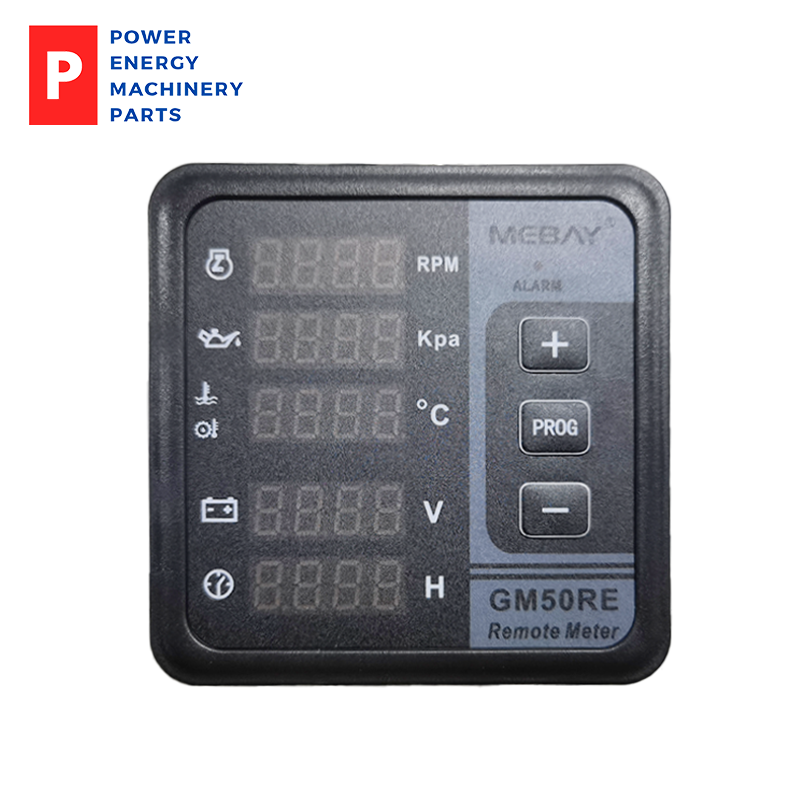

  GM50RE is a remote supporting auxiliary engine instrument for GM50HR and GM50CR. It is connected through the RS485 interface and can remotely read and display engine-related parameters. One auxiliary engine instrument monitors a host computer to achieve real-time synchronization of parameters. Parameters can be adjusted and set through buttons to meet the needs of different applications. In addition, European-style terminal wiring is used to facilitate the installation and removal of modules.

Features

  32-bit original imported microcontroller;

  Highlight digital tube displays measurement value;

  English and symbolic instructions;

  Use the panel keys to set and modify system parameters.

Parameter display

  Engine speed;

  Engine oil pressure;

  Engine oil temperature;

  Engine cooling water temperature;

  battery voltage;

  Accumulated working hours.

Specifications

  Power supply: DC8~36V;

  Power consumption: MAX1.5W;

  Operating environment temperature: -20~65℃;

  Storage environment temperature: -40~85℃;

  Protection level: IP54 (front panel after installation);

  Overall dimensions (W * H * D): 100mm*100mm*77mm;

  Opening size (W * H): 91mm*91mm;

  Weight: 150 g.
