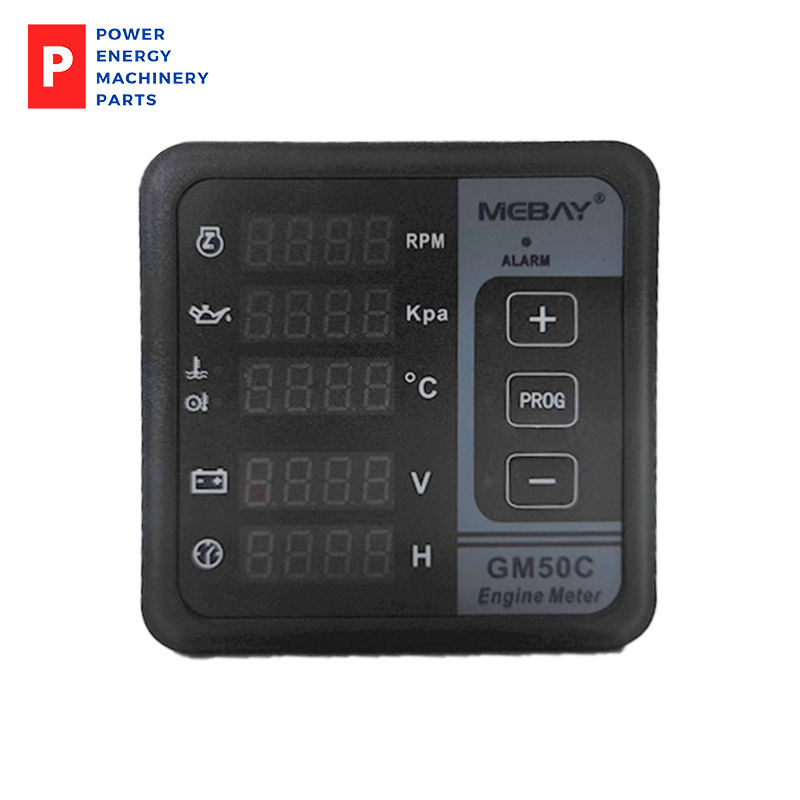

MEBAY Engine Digital Meter GM50CR
Product Introduction:
Module overview
GM50C is a lightweight, low-cost module used to measure and display engine speed, water temperature, oil temperature, oil pressure, battery voltage and accumulated engine running time. Standard CAN communication interface, built-in J1939 protocol, compatible with most EFI engines. Parameters can be adjusted and set through buttons to meet the needs of different applications. In addition, European-style terminal wiring is used to facilitate the installation and removal of modules.
GM50C series meters are available in two models:
GM50C: reads engine parameters through CAN interface and built-in J1939 protocol, has alarm protection function, and modifies parameters through buttons;
GM50CR: An RS485 interface is added on the basis of GM50C, which can monitor engine parameters and set operating parameters through PC software, and can connect to remote replica instruments to view parameters;
Features
Equipped with various protection functions
Highlight digital tube displays measurement value
Can display ECU alarm fault code
Panel buttons to set and modify system parameters
Equipped with data remote monitoring function
The engine speed can be controlled through the buttons on the panel
Parameter display
Engine speed;
Engine oil pressure;
Engine oil temperature;
Engine cooling water temperature;
battery voltage;
Accumulated working hours.
Protective function
Overspeed protection;
Low oil pressure protection;
High oil temperature protection;
High water temperature protection;
Low battery voltage alarm;
ECU alarm.
Range and accuracy
Battery voltage measurement accuracy: error ≦±1% (within range);
Accumulated time range: 0-999999 hours (minimum recording 0.1 hours);
Specifications
Power supply: DC8~36V;
Power consumption: MAX1.5W;
Alarm output: Passive contact output, maximum DC1A;
Operating environment temperature: -20~65℃;
Storage environment temperature: -40~85℃;
Protection level: IP54 (front panel after installation);
Overall dimensions (W * H * D): 100mm*100mm*77mm;
Opening size (W * H): 91mm*91mm;
Weight: 150 g.
