Module overview

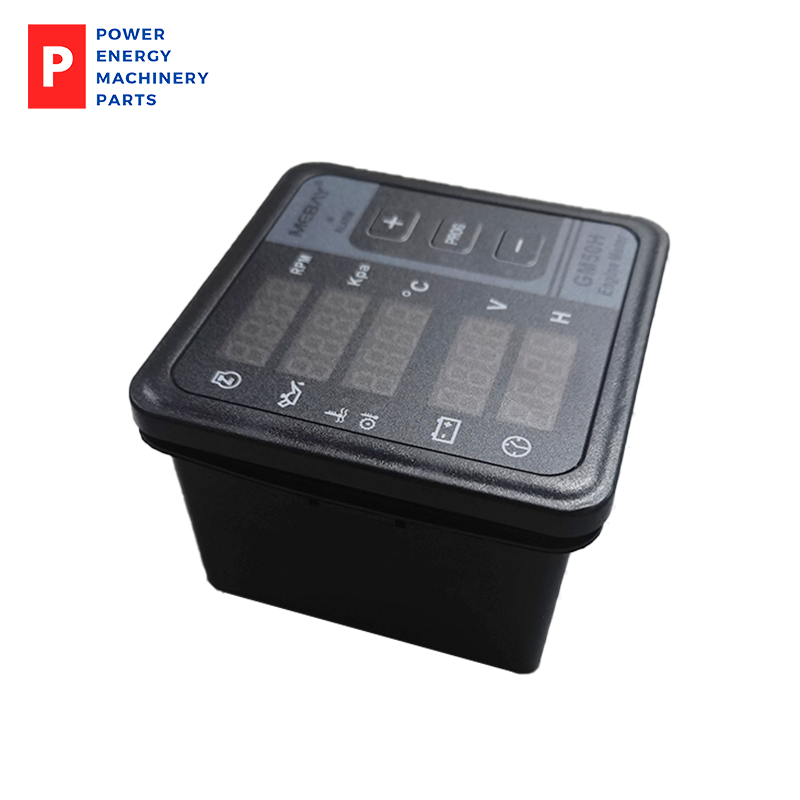

  GM50H MKII is a lightweight, low-cost module used to measure and display engine speed, water temperature, oil temperature, oil pressure, battery voltage and accumulated engine running time. Parameters can be adjusted and set through buttons to meet the needs of different applications. In addition, European-style terminal wiring is used to facilitate the installation and removal of modules.

GM50H MKII series meters are available in two models:

GM50H MKII: Collect engine parameters through resistive sensors, have alarm protection function, and modify parameters through buttons;

GM50HR MKII: On the basis of GM50H, an RS485 interface is added, which can monitor engine parameters and set operating parameters through PC software. Engine parameters and set operating parameters can be monitored through PC software;

Features

  Equipped with a variety of protection functions;

  Power generation frequency conversion speed;

  A variety of built-in sensor curves are optional;

  Customizable sensor parameter curve;

  Highlight digital tube displays measurement value;

  English and symbolic instructions;

  Use panel buttons to set and modify system parameters;

  Equipped with data remote monitoring function.

Parameter display

  Engine speed;

  Engine oil pressure;

  Engine oil temperature;

  Engine cooling water temperature;

  battery voltage;

  Accumulated working hours.

Protective function

  Engine overspeed protection;

  Low oil pressure protection;

  High oil temperature protection;

  High water temperature protection;

  Low battery voltage warning.

  Range and accuracy

  Speed measurement accuracy: error ≦±1% (within range);

  Oil pressure measurement accuracy: 0-1000KPA, error ≦±2.5%;

  Water temperature measurement accuracy: 20-100 degrees Celsius, error ≦±2.5%;

  Oil temperature measurement accuracy: 20-150 degrees Celsius, error ≦±2.5%;

  Battery voltage measurement accuracy: error ≦±1% (within range);

  Accumulated time range: 0-999999 hours (minimum recording 0.1 hours).

Specifications

  Power supply: DC8~36V;

  Power consumption: MAX1.5W;

  Sensor resistance: 0~1000 ohms;

  Speed input signal frequency range: 50Hz ~ 10kHz;

  Speed input signal amplitude range: AC3～65V;

  Input power generation signal: AC40~280V (45~70Hz);

  Alarm output: Passive contact output, maximum DC1A;

  Operating environment temperature: -20~65℃;

  Storage environment temperature: -40~85℃;

  Protection level: IP54 (front panel after installation);

  Overall dimensions (W * H * D): 100mm*100mm*77mm;

  Opening size (W * H): 91mm*91mm;

  Weight: 150 g.
