Product Introduction:

Overview

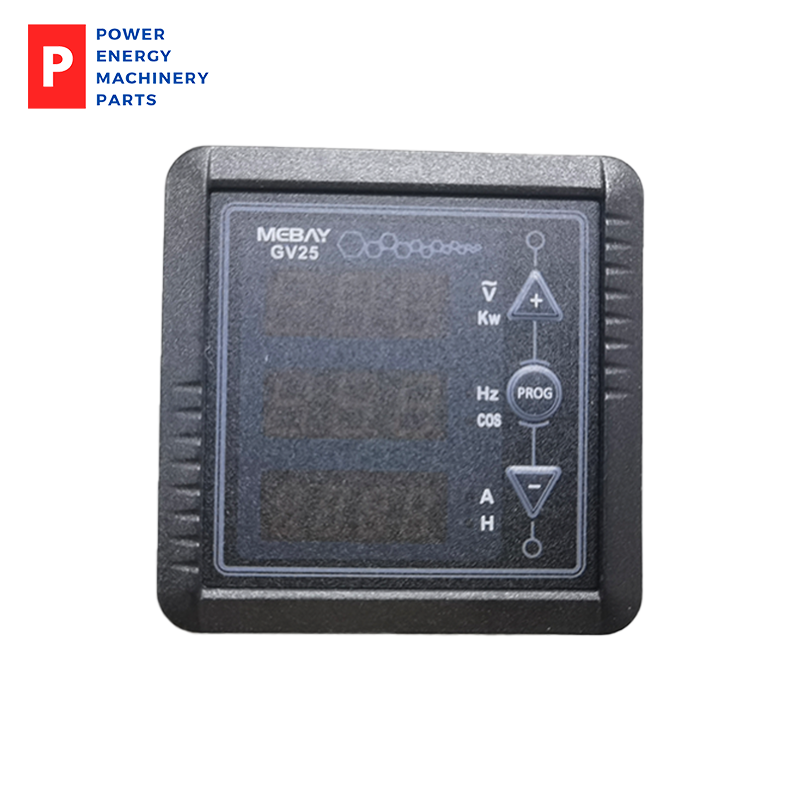

  GV25 MKII is an upgraded product of our company's GV25 digital display meter. It is a lightweight, low-cost module used to measure and display AC voltage, frequency, current, power, power factor, and accumulated operating time. It can replace the traditional pointer. type instrument, realizing one meter for multiple purposes.

    This series of instruments has two models:

    GV25 MKII: equipped with a current transformer with a secondary of 5A;

    GV25L MKII: equipped with a current transformer with a secondary of 50mA.

Features

  After installation, the panel reaches IP54 protection level;

  Able to measure and display voltage, frequency, and current simultaneously;

  3-digit high-brightness LED digital tube displays the measured value;

  The current transformer ratio can be set;

Parameter display

  AC voltage V

  Frequency Hz

  Current A

  PowerKw

  Power factor COS

  Accumulated working time H

Range and accuracy

  Voltage:

    110V system: AC90~130V, error ≤±1%;

    220V system: AC165~265V, error ≤±1%;

    380V system: AC360-440V, error ≤±1%;

  frequency:

    50Hz system: 45-60Hz, error ≤±0.5%;

    60Hz system: 55-65Hz, error ≤±0.5%;

  Current:

    Secondary current 5A: 5-6000A, error ≤±2.5%;

    Secondary current 50mA: 1-200A, error ≤±2.5%;

  Power: error ≤±3%, within measuring range;

  Power factor COS: 0-1, error ≤±1%;

  Accumulated working time: 0.0-9999 hours, minimum recording time 0.1H.

Specifications

  Working power supply:

    110V, 220V system: AC85~265V, 50/60Hz;

    380V system: AC360~440V, 50Hz.

  Power consumption: MAX 1W

  Operating temperature range: -20℃~65℃

  Volume size (W * H * D): 78mm*78mm*63mm

  Installation opening (W * H): 67mm*67mm

  Protection level: IP54 (front panel after installation)

  Weight: 200g
