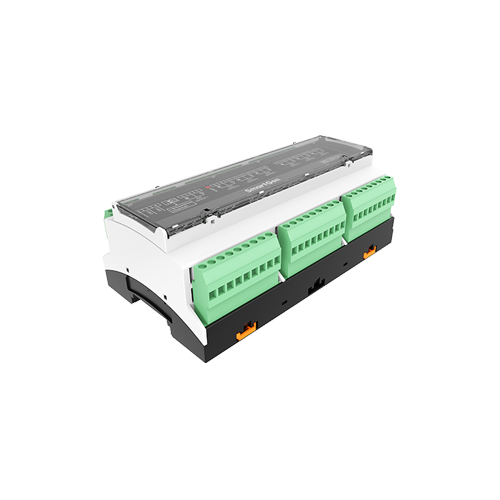

Smartgen DOUT16B
Product information table:
16 channels digital output, CCS
Working PowerRange : DC(18-35)V
Overall Dimension : 161.6 x 89.7 x 60.7
Working Temperature : (-25~+70)℃
weight : 0.6kg
Product Introduction:
DOUT16B Digital Output Module is an expansion module which has 16 auxiliary digital output channels. DOUT16B data is transmitted to DOUT16B output module by HMC9000/HMC6000 for processing via CANBUS.

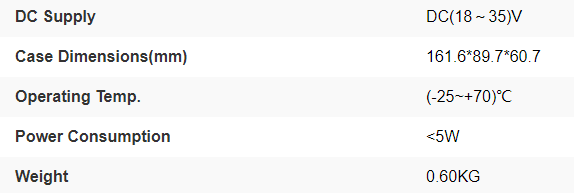

TECHNICAL PARAMETERS
Parameter | Contents |
Working Voltage | DC18.0V~ DC35.0V continuous power supply |
Power Consumption | <5W |
Programmable relay output 1-16 | 7A Connected to common output port. |
Case Dimension | 161.6mm x 89.7mm x 60.7mm |
Working conditions | Temperature：(-25~+70)°C Humidity：(20~93)%RH |
Storage conditions | Temperature：(-25~+70)°C |
Weight | 0.60kg |
Technical Parameters
