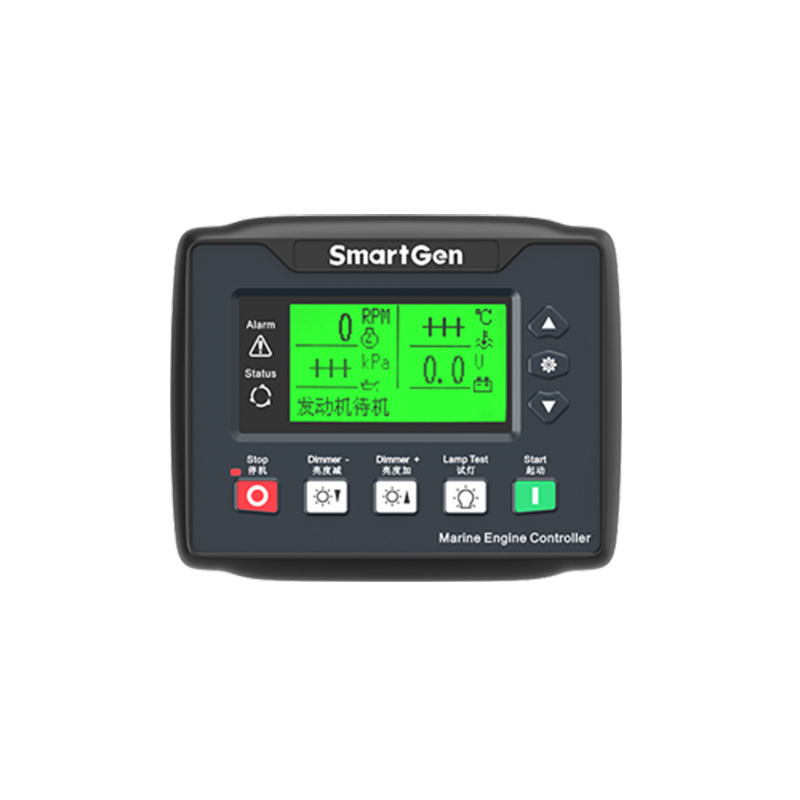

HMC4000RM remote monitoring controller integrates digitization, intelligentization and network technology which are used for remote monitoring system of single unit to achieve remote start/stop functions. It fit with LCD display, and optional Chinese/English languages interface. It is reliable and easy to use.

PERFORMANCE AND CHARACTERISTICS

● 132*64 LCD with backlit, optional Chinese/English interface display, and push-button operation;

● Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions;

● Silicone panel and buttons with great performance to work in high/low temperature ambient;

● Connect to host controller via RS485 port to achieve remote start/stop control in remote control mode;

● With LCD brilliance level (5 levels) adjusting button, it is convenient to use in different occasion;

● Waterproof security level IP65 due to rubber seal installed between the controller enclosure and panel fascia.

● Metal fixing clips are used;

● Modular design, self extinguishing ABS plastic enclosure and embedded installation way; small size and compact structure with easy mounting.

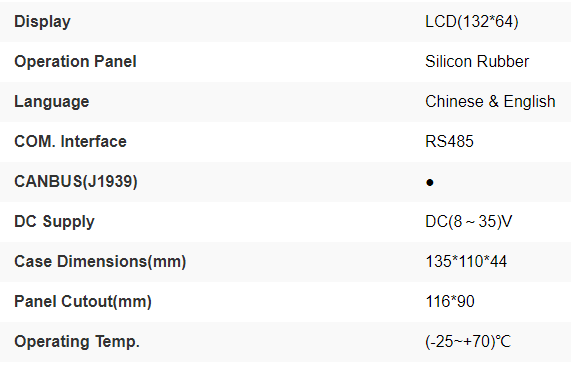

Technical Parameters
