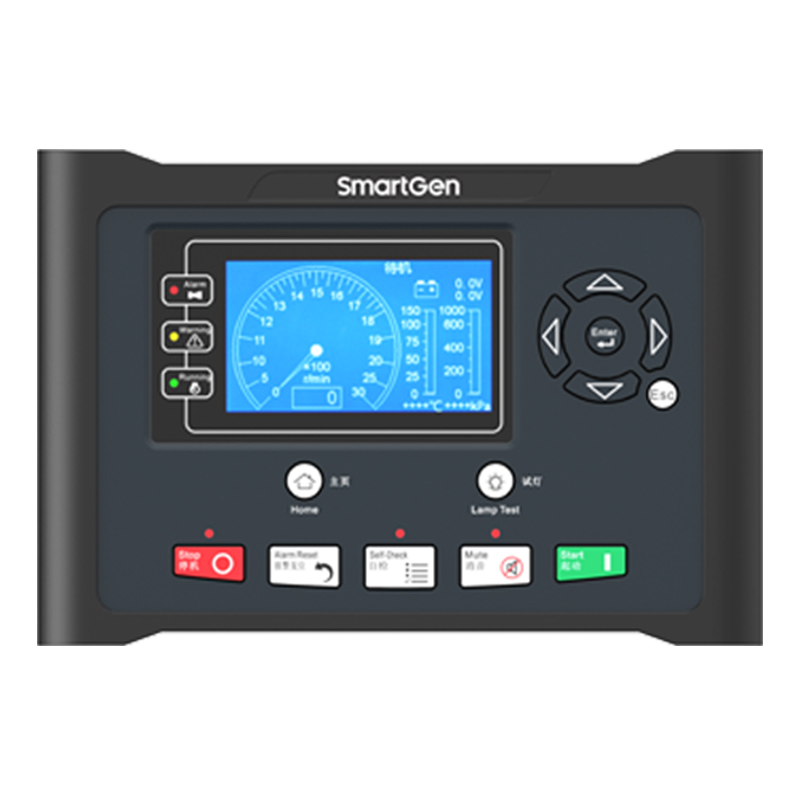

HMC9000A/HMC9000S Diesel Engine Controller integrates digitization, intelligentization and network technologies together, and is applicable for one-set diesel engine automation and monitoring system to achieve remote control on the engine, local automatic start/stop, data measurement, alarm protection and “three remotes” (remote control, remote measuring and remote communication). It employs TFT-LCD display screen with optional Chinese/English languages interface. It is simple and steady to operate.

HMC9000A/HMC9000S Diesel Engine Controller employs 32-bit ARM processor and can achieve precise measuring for multiple parameters, fixed value adjustment, time setting, and integer value adjustment etc. They can be configured and monitored from the front panel or by communication interface on PC. It has compact structure, simple wire connection and high reliability, which can be used for all kinds of diesel engine automation system. It is widely used in marine emergency genset, main propulsion engines, main generator engines and pump engines.

HMC9000A/HMC9000S Diesel Engine Controller has SAE J1939 Interface, which can communicate with electrical injection engines with J1939 interface. Speed, water temperature, fuel temperature and oil pressure etc. parameters can be displayed and read on the LCD directly through communication interface. Users are needless to install sensors and it reduces complex wires. This interface can also do all kinds of module expansion. Simple wiring ensures fast transport speed and high reliability.

HMC9000A/HMC9000S Diesel Engine Controller has remote-distance monitoring interface, which is used for remote monitoring and can perform start/stop and other functions remotely.

PERFORMANCE AND CHARACTERISTICS

● Core of 32-bit ARM micro-processor, 4.3-inch LCD display with backlight, optional Chinese/English language, tuch-button operation.

● Ability of controlling and communicating with dozens of electrical injection engines with J1939 interface. It can also connect with digital output module, security module, electric quantity protection module, analog input module etc. for users’ convenience and needs.

● Realizing the function of remote-distance monitoring the engine via REMOTE (CANBUS) interface. Under the remote monitoring mode, other buttons on the controller do not work except Stop button. It is safe and convenient.

● Equipped with RS485 and USB communication interfaces. It can realize the functions of data communication and “three-remotes” by installing monitoring software on PC and MODBUS protocol.

● Protection control function: it can realize the Start/Stop, Alarm protection function under remote or local control mode.

● Override mode function: under this mode only over speed shutdown and emergency shutdown can stop the engine.

● Parameter setting function: it allows users to change and set the parameters and meanwhile they shall be stored in the FLASH memorizer so that they will not disappear in case of power outage.

● Four 4-20mA inputs: it can put in pressure or liquid level messages.

● Four resistance sensor inputs: it can put in pressure signal, PT100 temperature signal, liquid level signal or other signals.

● Two K-type thermocouple inputs: it can put in exhaust temperature signals.

● Real-time calendar, real-time clock, and total running time accumulation function.

● Displaying the total start accumulation times.

● Built-in speed detection equipment: it can precisely judge successful start status, normal running status and over speed status.

● Circularly 99 event logs preservation function: users can search the documentation on the spot.

● Double power supply monitoring and transferring function: power supply switchover can be performed through external interface by setting switchover voltage value.

● All parameters are done by digitalized modification: it gets rid of the analog adjustment methods of ordinary potentiometers and improves the reliability and stability of the whole genset.

● Break wire detection function for some Input/output ports.

● Modular structure design, and embedded installation way: Structure compact; size small; and operation easy and convenient.

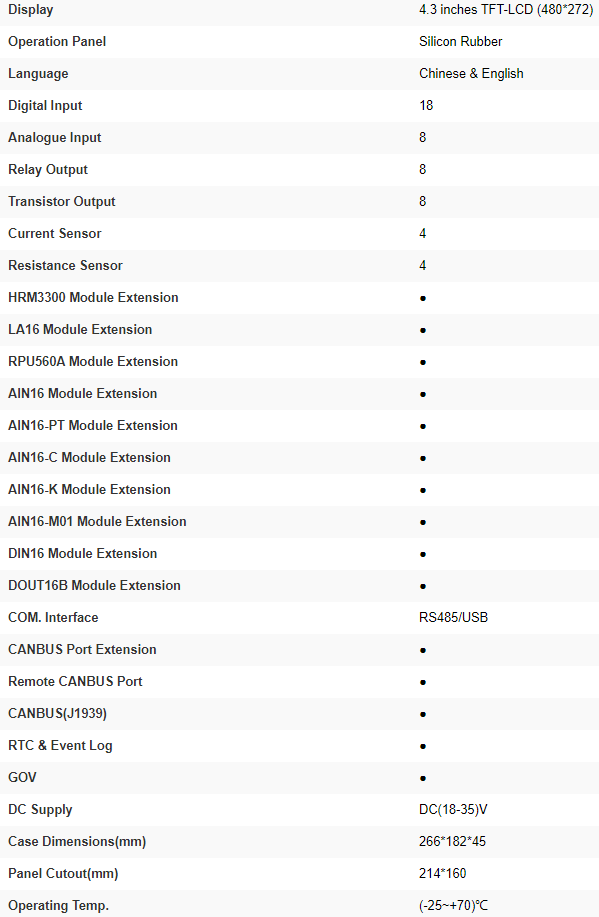

Technical Parameters
