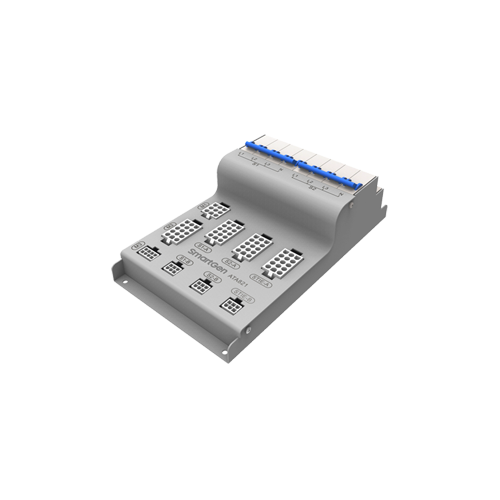

Smartgen ATA821
Product information table:
Suitable for HAT821 dual power bus tie ATS controller
Working PowerRange : AC400V
Overall Dimension : 144.4*252*75.3
Installation Dimension : 125*240
Working Temperature : (-25~+70)℃
weight : 1.6kg
Product Introduction:
ATA821 Bus Tie Adapter for Dual Power Switch is a kind of adapter which makes convenience for connection between HAT821 dual power bus tie ATS controller and smart breaker, reducing a lot of field wiring work for users, not only labor saving, time saving but also reliable.
PERFORMANCE AND CHARACTERISTICS
1.Suitable for 3Ph 4W AC system;
2.Two integrated 400V/50Hz/10A circuits of air breaker, which are individually used to connect two circuits of AC power;
3.All-in-one integrated adaptor, which can simultaneously connect S1 breaker, S2 breaker and bus tie breaker;
4.Suitable for HAT821 dual power bus tie ATS controller;
5.Cold rolled plate closure;
6.With screw installation method, adapter is fixed by 4 screws.

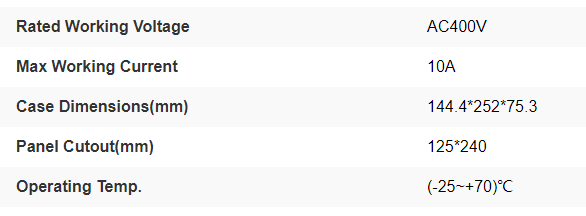

Technical Parameters
Brands Involed:
