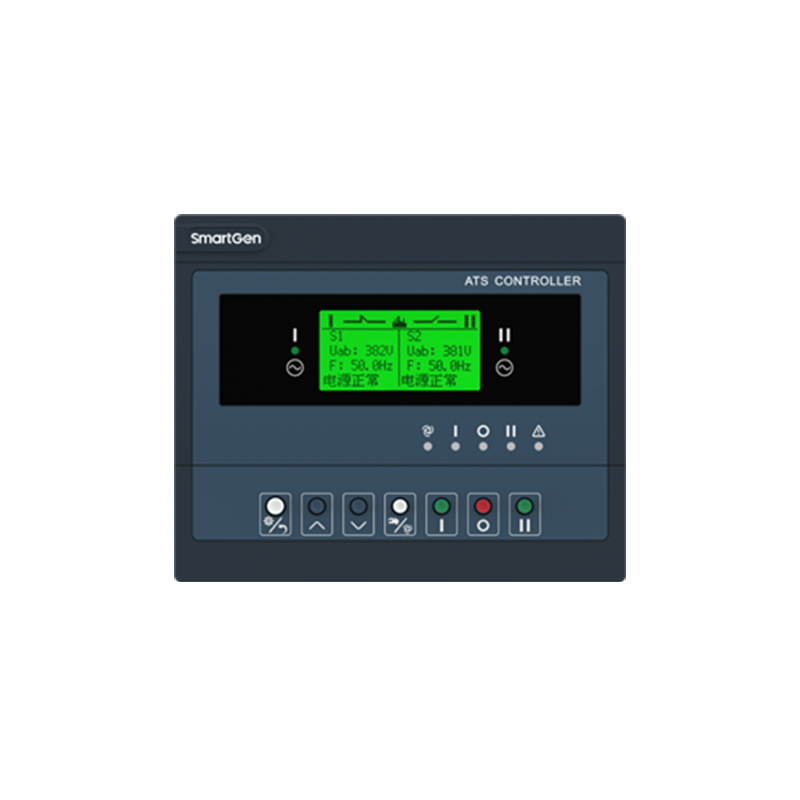

HATC60 dual power automatic shift controller is the intelligent dual-power switchover module with configurable function, automatic measurement, LCD display, and digital communication. It combines digitization, intelligence and networking together. Measurement and control process can be conducted automatically, which reduces artificial operating mistakes, so that it is the ideal option for dual-power switchover products.

HATC60 dual power ATS controller is composed by the powerful microprocessor in the core, which can precisely measure the voltages (2-way 3-phase) and make accurate decision for abnormal voltages (overvoltage, undervoltage, overfrequency, underfrequency, phase loss, reverse phase sequence), and putout power-off control switch signal. This device is dedicated for Socomec ATS switch. It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electrical automatic control system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building and etc.

PERFORMANCE AND CHARACTERISTICS

● System type can be set as Mains-Power Generation, Mains-Mains, Power Generation-Power Generation etc.;

● Suitable for multiple AC system types (3-phase 4-line, 3-phase 3-line, 1-phase 2-line, 2-phase 3-line methods);

● Equipped with single color LCD screen with 132x64 pixel and bilingual display (Simplized Chinese, English), and tuch-button operation;

● Able to collect and display 2-way 3-phase voltage, frequency and phase sequence;

● Equipped with overvoltage, Undervoltage, overfrequency, underfrequency, phase loss, reverse phase sequence functions;

● Equipped with display function of accumulated S1/S2 breaker-close times;

● Equipped with display function of current lasting power supply time and accumulated S1/S2 power supply time;

● Equipped with Auto/Manual status switchover function. Under manual status switch breaker close and open can be controlled artificially;

● All parameters can be configured on the spot. Password verification is employed in case of wrong operation by non-professionals;

● Artificial machine test is available on the spot for genset Start/Stop operation;

● Equipped with switch breaker re-close function;

● Breaker close output can be set as pulse or continuous output;

● Equipped with separated 2-way N-wire design;

● Equipped with real-time clock display function, and event log function which can record 200 items circularly;

● Equipped with timing inspection Start/timing No-start function for genset, which can be set for once running, monthly running, or weekly running and running with loading or not can be set for all of them;

● Able to control two generators, which realizes circular running, primary running, and balanced time running;

● Wide DC power supply range, which allows the controller bear instantaneous 80V DC input at most;

● Large space between AC input terminals which allows the controller to bear maximum 625V input;

● One RS485 isolated communication interface is designed. It applys ModBus-RTU communication protocol and has remote control, remote communication, remote measuring, remote regulating functions. It can remotely control genset Start, Stop, switch breaker close and open functions;

● Modular structure design, flame retarding ABS shell, pluggable connecting terminal, and embedded installation method, with compact structure and convenient installation.

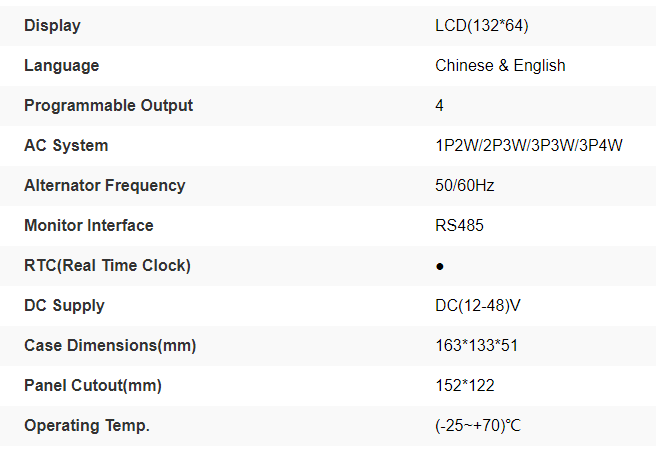

Technical Parameters
