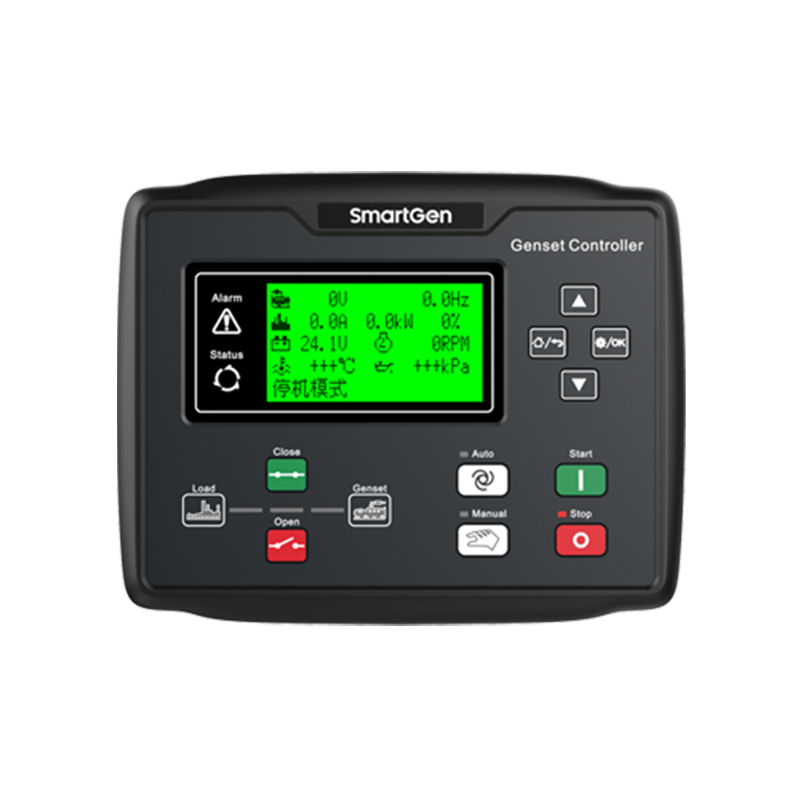

HGM6100LT series automatic controller is specially designed for applying to extremely high/low temperature (-40℃~+70℃) environment. It is an automatic control and monitoring system for genset, which integrates digital, intelligent and network techniques. It can reliably work in extremely temperature environment due to its heatable LCD and special electron components. Moreover, it carries out functions of automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French with easy and reliable operation.

HGM6100LT series automatic controller uses micro-processing technique which can achieve precision measurement, value adjustment, timing and threshold setting etc.. All the parameters can be configured from front panel or use USB interface (or RS485 interface and ENTHERNET) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple connections and high reliability.

HGM6100LT controller has two types:

HGM6110LT: it is used for single unit automation, controlling generator to start/stop by remote start signal;

HGM6120LT: Based on HGM6110LT, it adds mains electric quantity monitoring and mains/generator automatic switching control (AMF), especially suitable for the automation system composed by mains and genset.

Main characteristics are as below

● 132*64 LCD display with backlight, heatable LCD in low temperature, and optional language interface (Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French), push-button operation;

● Acrylic screen, improved wearable and scratch resistance property. Front panel include silica-gel panel and buttons;

● Widely working temperature (-40℃~+70℃) enable the module working in a place of harsh environmental conditions;

● With RS485 communication port, can achieve “three remote” functions via MODBUS protocol;

● ENTHERNET communication port works together with cloud monitoring platform and mobile phone APP can realize monitor function for genset at anytime in any place;

● With CANBUS port which can be connected to electronic injection with J1939, it not only can monitor frequently-used data (such as water temperature, oil pressure, rotated speed and fuel consumption, etc.) but also can control start, stop, high speed and low speed (controller with CANBUS port is needed) via CANBUS port.

● Adapt to 3P4W, 3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC power system;

● Can measure and display 3 phase voltage, 3 phase current, frequency, power parameter of mains/gens;

Mains                                                 Generator

Line voltage (Uab, Ubc, and Uca)        Line voltage (Uab, Ubc, and Uca)

Phase voltage (Ua, Ub, and Uc)         Phase voltage (Ua, Ub, and Uc)

Frequency   HZ                                   Frequency   HZ

Phase sequence                                  Phase sequence

Load

Current   IA, IB, IC

Split-phase and total active power kW

Reactive power kVar

Apparent power kVA

Power factor PF

Generator accumulated energy kWh

Output percentage with load   %

● Mains have detection functions of over/under voltage and lack of phase; Gens have functions of over/under voltage, over/under frequency, over current and over power;

● Precision measure and display of parameters about engine,

Temp. (WT),           °C/ °F

Oil pressure (OP),      kPa/psi/bar

Fuel level (FL),         %         Fuel remains     L

Speed (SPD),          r/min

Battery Voltage (VB),    V

Charger Voltage (VD),   V

Accumulative running hours

Accumulative start times

● Control protection: Automatic start/stop of genset, load transfer(ATS control) and perfect failure display and protection;

● With ETS, idle speed control, pre-heat control, speed droop/raise control, all of them are relay output;

● Parameter setting: Allow user to modify setting and store them in internal FLASH memory. The parameters cannot be lost even when power off. All of parameters can be set not only from the front panel, but also use USB interface (or PS485 interface, ETHERNET) to adjust them via PC.;

● Multi sensors of temperature, pressure and fuel level can be used directly, parameters can be defined by user;

● Multi conditions of crank disconnect (speed sensor, oil pressure, generator frequency) can be selected;

● With emergency start function;

● With flywheel teeth numbers automatic identification function;

● Widely power supply range: (8~35)VDC, accommodating to different starting battery volts;

● All parameters use digital modulation, instead of analog modulation using conventional potentiometer, having improved reliability and stability;

● With maintenance function. Types (date or running time) can be selected and actions (warning or alarm shutdown) can be set when maintenance time out;

● Event log (max.99 pieces), real-time clock, scheduled start & stop (can be set as start unit once a day/week/month whether with load or not);

● Add rubber gasket between shell and controller screen, the waterproof can reach IP65;

● Controller is fixed by metal fixing clips;

● Modular design, flame-retardant ABS shell, embedded mounting, compact structure and easy installation.

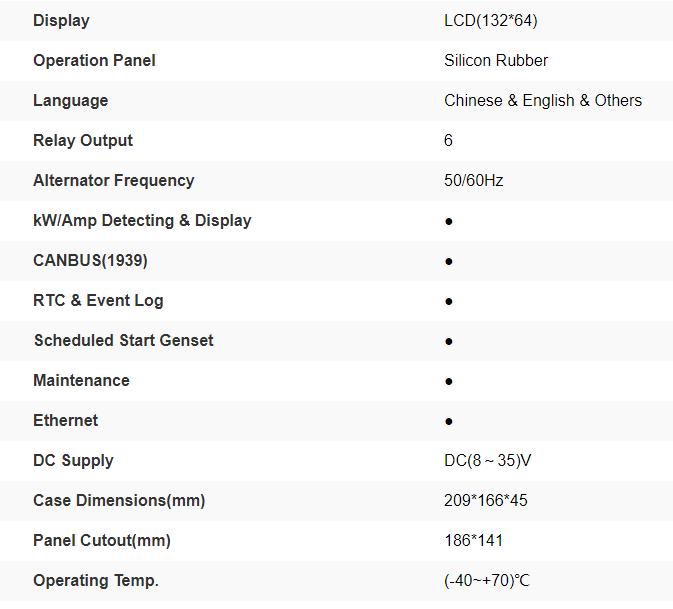

Technical Parameters
