HGM6100NC-RM is remote monitoring module designed for HGM6100NC series genset controllers. With RS485 port it can realize functions of remote start/stop, data measuring, and alarm display etc. It is applicable for single remote monitoring system. It can be in the monitoring mode, realizing only monitoring, not controlling, or it can be changed over to remote control mode by local module transfer, monitored and controlled remotely.

HGM6100NC-RM remote monitoring module uses micro-processing technique and 132x64 LCD display. 8 kinds of languages are optional (Simplified Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French) and can be changed freely. It can be widely used in all types of automatic control system with compact structure, simple connections and high reliability.

PERFORMANCE AND CHARACTERISTICS

HGM6100NC-RM has two types:

HGM6110NC-RM: remote monitoring module for HGM6110NC/6110CAN series controllers;

HGM6120NC-RM: remote monitoring module for HGM6120NC/6120CAN series controllers;

Main characteristics are as below:

● 132x64 LCD display with backlight, 8 selectable language interface (Simplified Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and French), push-button operation;

● Acrylic hard screen, better wear proof and scratch resistance property;

● Silicone panel and keys with strong adaptability in higher and lower temperature environments;

● RS485 communication port, which can achieve “three remote” (remote control, remote measurement and remote communication) functions via MODBUS protocol;

● Parameter setting function: allows users to modify the settings and at the same time they shall be stored in internal FLASH memory, so that the parameters won't be lost in case of power outage. All parameters can be set from the front panel, but also can be adjusted by RS485 interface via PC. All parameters of HGM6100NC-RM must be configured as same as that of local module of HGM6100NC controller;

● Wide power supply range: (8~35)V DC, accommodating to different starting battery voltage environments;

● All parameters use digital modulation, getting rid of analog modulation of conventional potentiometer, improving whole reliability and stability;

● Maintenance function: maintenance type can be selected as date or running time; maintenance due actions can be set (warning or shutdown);

● Event Log, Real Time Clock, Scheduled Run/Not Run (start once monthly/weekly/daily; on/off load can be set) functions;

● Rubber gasket between the enclosure and controller screen with waterproof protection class IP55;

● Controller is fixed by metal clips;

● Modular design, flame-retardant ABS shell, pluggable wiring terminals, embedded mounting, compact structure and easy installation.

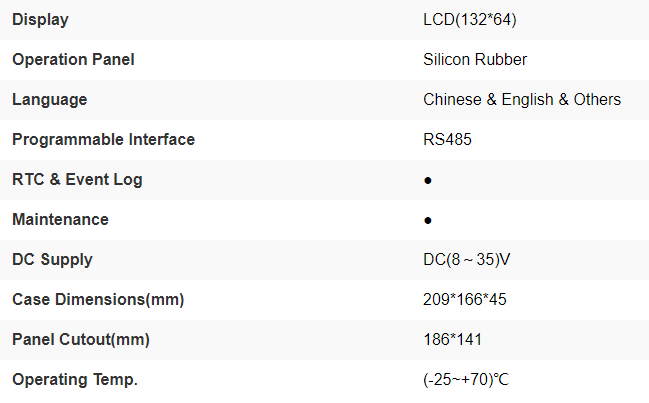

Technical Parameters
