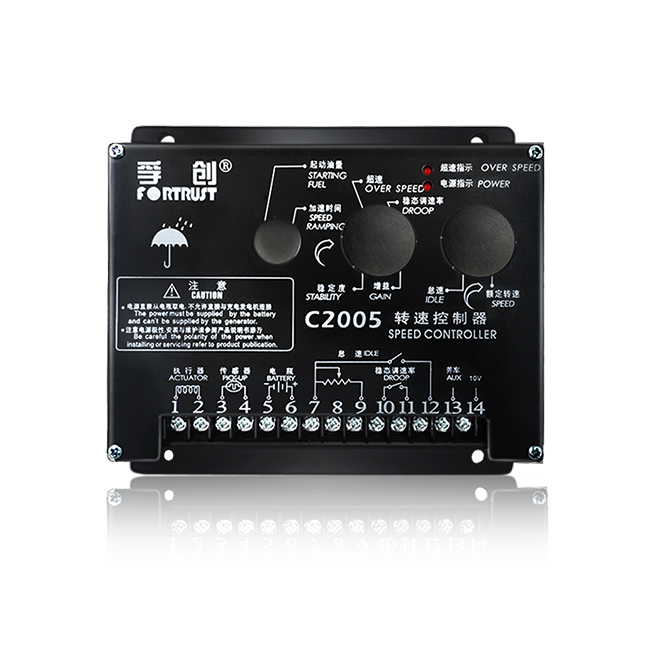

Fortrust Speed Controllers C2005
C2005型转速控制器(SPEED CONTROLLER)
Basic Characteristics
● Voltage
DC24V(Range 16~32V);
DC12V (For the specila order);
● Power Consumption <0.2A(Not Including the Actuator);
● Speed Fluctuation Rate ≤ 0.25%;
● The Stable Speed Regulating: 0 ~5% (Adjustable);
● Ambient Temperature: -40℃~+70℃;
● Ambient Humidity <95%;
Product Introduction:
1.1 Basic Function
● Starting Fuel: Adjust the smoking phenomenon when the engine is driving;
● Speed Trimming Adjustment: Speed control by single close-loop control,no problem of remote control.
● Speed Ramping: Adjust the time from idle to rated speed.
● Over Speed: Set the maximum speed value and cut the power when over.
● Speed Conversion: Change from idle to rated speed.
● Stability:Could be changed according to your needs.
● Aux:Could connect with serval gen set, operate by handle or automatically.
● Speed adjustment in the whole time and no prolbem of successive adjustment.
● Emergency stop: The engine will be stop automatically when lossing speed signal and ontroller power.

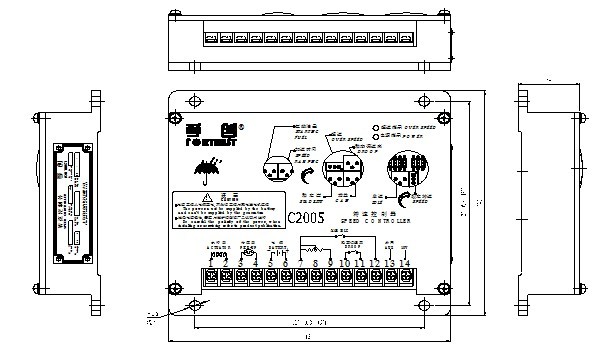

1.2 C2005 drawing
C2005 installation

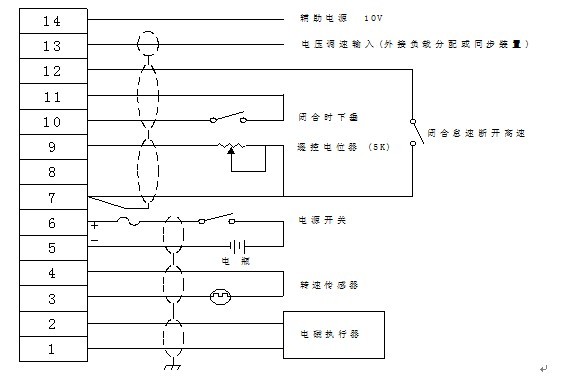

1.3 C2005 Wire connection
C2005
